Inflatable Curtain [2017-2022]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

WARNING:

The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 30 seconds before disconnecting or removing any SRS components.

Follow instructions about safety information pyrotechnical system. Refer to: [SAFETY INFORMATION PYROTECHNICAL SYSTEMS]

See information regarding the handling of non-deployed pyrotechnical parts. Refer to: [HANDLING NON-DEPLOYED PYROTECHNICAL PART]

Perform battery disconnecting and connecting. Refer to: [BATTERY DISCONNECTING AND CONNECTING]

Remove the following items:

inner rear view mirror. Refer to: [INNER REAR VIEW MIRROR]
A-pillar trim panel. Refer to: [A-PILLAR TRIM PANEL]
B-pillar trim panel. Refer to: [B-PILLAR TRIM PANEL]
C-pillar trim panel. Refer to: [C-PILLAR TRIM PANEL]
Panel, D-pillar. Refer to: [PANEL, D-PILLAR]

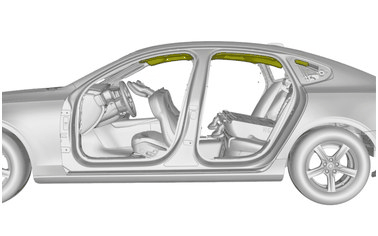

Courtesy of VOLVO CARS CORPORATION

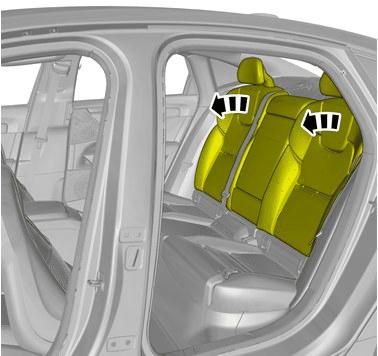

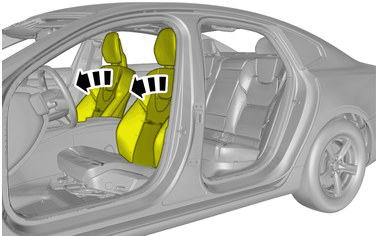

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

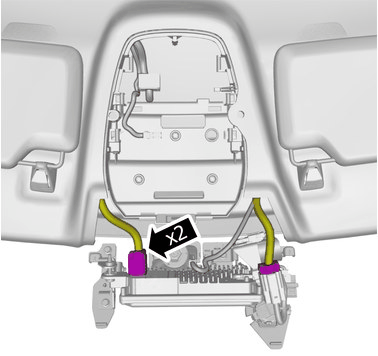

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

On both sides.

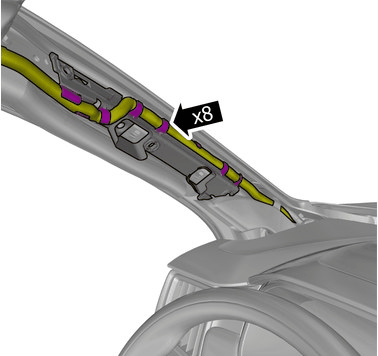

Loosen the wiring harness or move it to the side.

Courtesy of VOLVO CARS CORPORATION

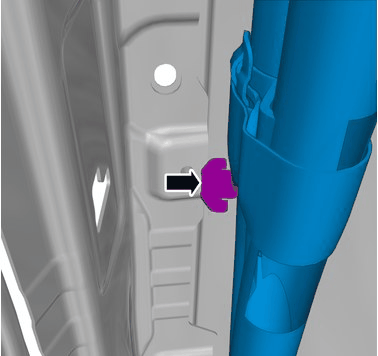

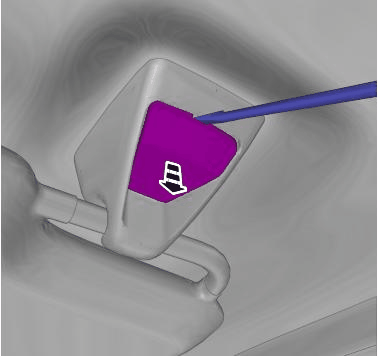

Remove the fastener.

On both sides.

Courtesy of VOLVO CARS CORPORATION

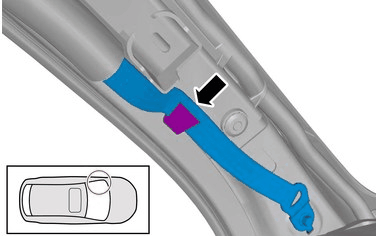

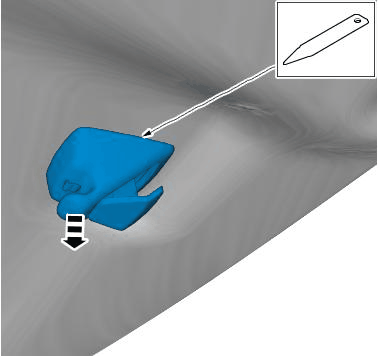

Remove the marked part.

On both sides.

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

Courtesy of VOLVO CARS CORPORATION

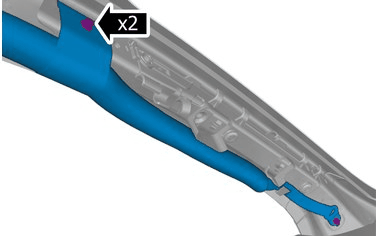

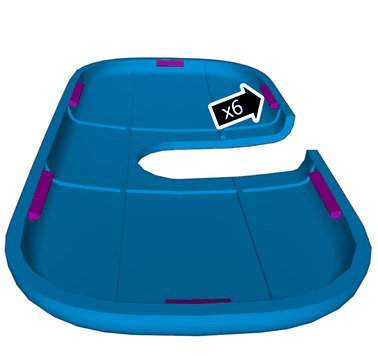

Remove the marked part.

On both sides.

Courtesy of VOLVO CARS CORPORATION

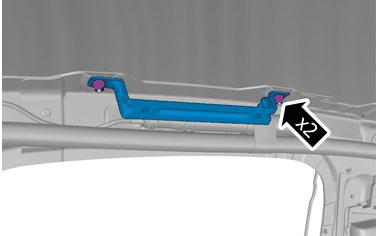

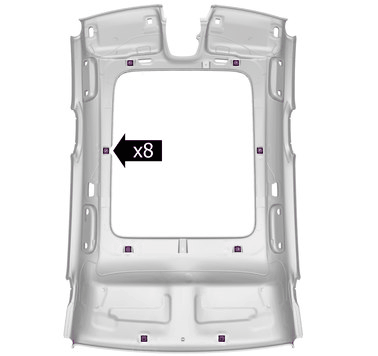

Remove the screws.

On both sides.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to crease the headliner.

NOTE:

The graphic shows the back of the component before removal.

NOTE:

Velcro strip

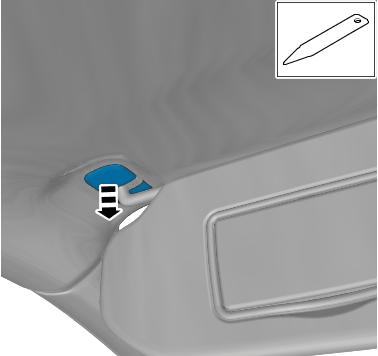

Use: Interior trim remover

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to crease the headliner.

HINT: This step may require the aid of another technician.

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

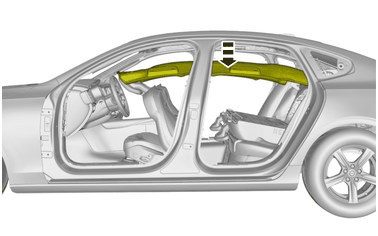

Lower to suitable height.

Courtesy of VOLVO CARS CORPORATION

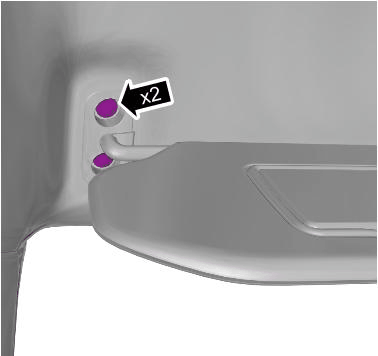

Remove the nuts.

Remove the marked part.

Torque: Entry handle bracket, to Body, 8Nm

Disconnect connector ignition cable. Refer to: [IGNITER WIRE CONNECTOR]

Courtesy of VOLVO CARS CORPORATION

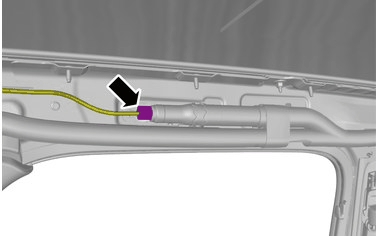

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

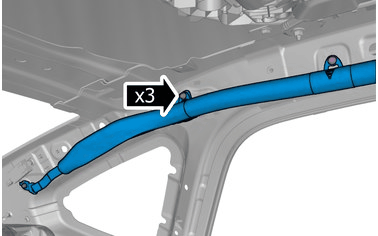

Loosen the screws.

Torque: Inflatable curtain to the body, 6Nm

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Torque: Inflatable curtain to the body, 6Nm

Courtesy of VOLVO CARS CORPORATION

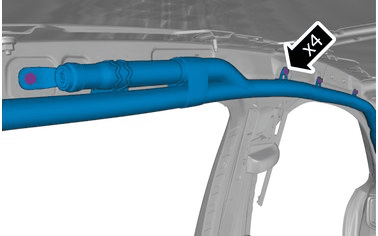

Loosen the screws.

Torque: Inflatable curtain to the body, 6Nm

Courtesy of VOLVO CARS CORPORATION

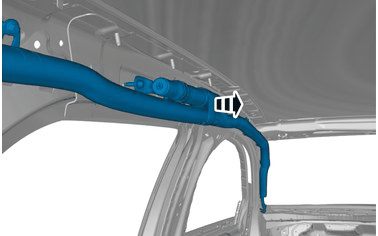

NOTE:

Note the position.

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

Courtesy of VOLVO CARS CORPORATION

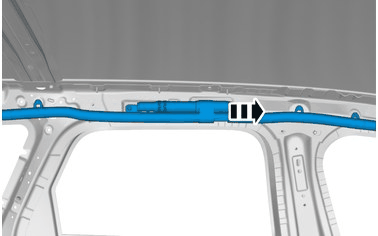

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure at the installation that the component has not become twisted.

Remove the marked part.
