Hood Hinge Releaser [2017-2022]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Follow instructions about safety information pyrotechnical system. Refer to: [SAFETY INFORMATION PYROTECHNICAL SYSTEMS]

See information regarding the handling of non-deployed pyrotechnical parts. Refer to: [HANDLING NON-DEPLOYED PYROTECHNICAL PART]

Perform battery disconnecting and connecting. Refer to: [BATTERY DISCONNECTING AND CONNECTING]

WARNING:

The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 30 seconds before disconnecting or removing any SRS components.

Remove the plenum cover. Refer to: [PLENUM COVER]

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

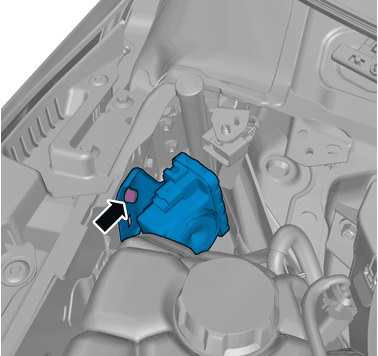

Remove the screw.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

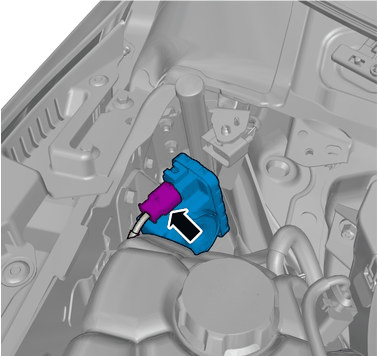

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

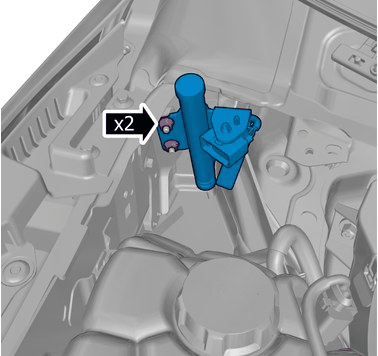

Remove the nuts.

Remove the marked part.

Torque: Hood hinge releaser, to Bracket, 10Nm

RIGHT-HAND DRIVE VEHICLES

Courtesy of VOLVO CARS CORPORATION

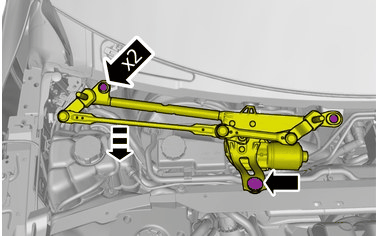

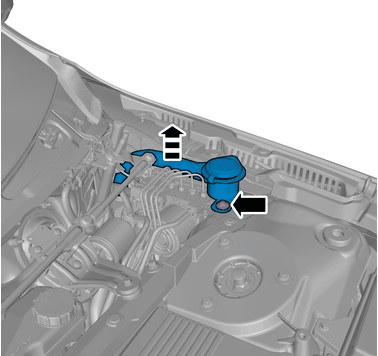

Remove the screws.

Fold marked part aside.

Torque: M6, 10Nm

Remove the marked part.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

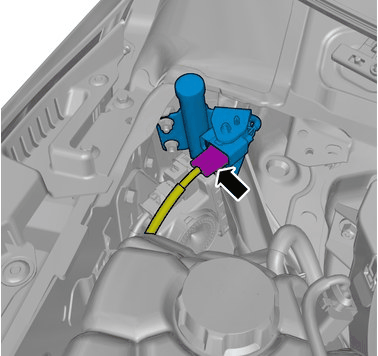

Disconnect the connector.

VEHICLES WITH ANTI-THEFT ALARM HORN WITH INTEGRAL BATTERY

Courtesy of VOLVO CARS CORPORATION

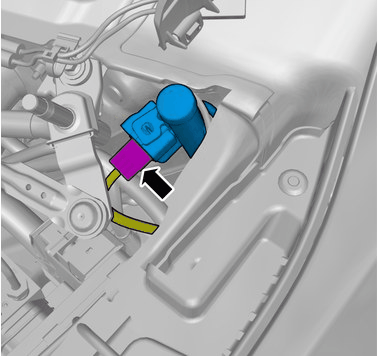

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

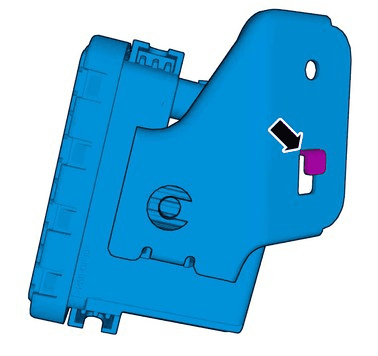

The graphic shows the back of the component before removal.

Courtesy of VOLVO CARS CORPORATION

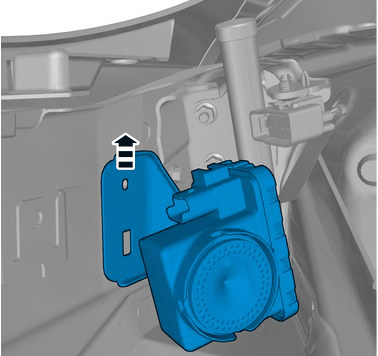

Remove the marked part.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

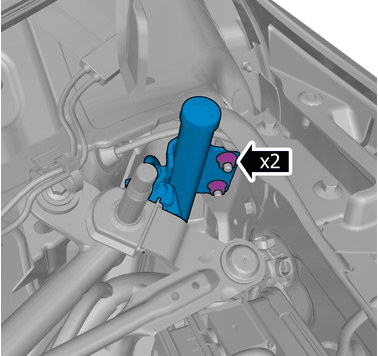

Remove the nuts.

Remove the marked part.

Torque: Hood hinge releaser, to Bracket, 10Nm
