Removal And Installation

REMOVAL

Remove glove compartment. Refer to: [GLOVE COMPARTMENT]

Courtesy of VOLVO CARS CORPORATION

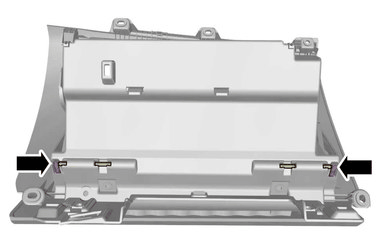

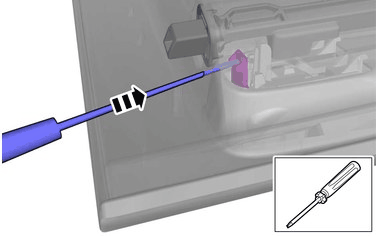

Release the locks.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

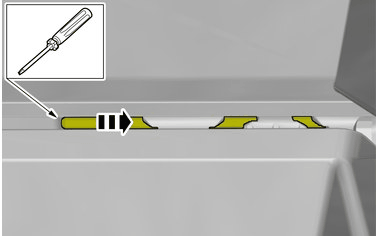

HINT: Use a screwdriver.

On both sides.

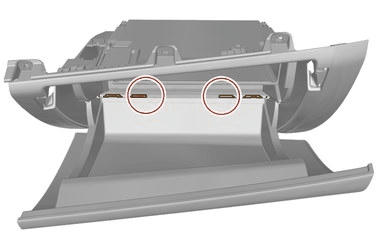

Loosen the marked detail/details.

Courtesy of VOLVO CARS CORPORATION

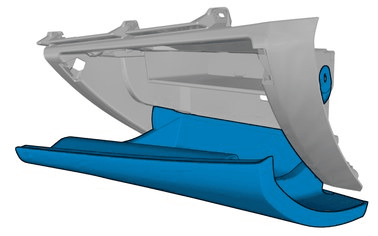

Remove the marked part.

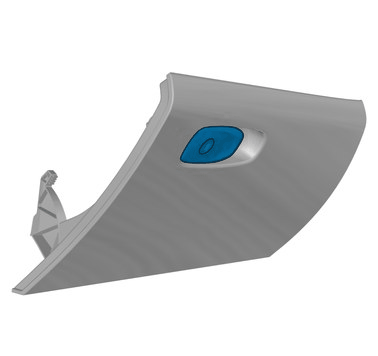

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

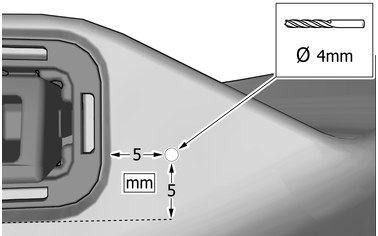

Use a drill with the stated size

Courtesy of VOLVO CARS CORPORATION

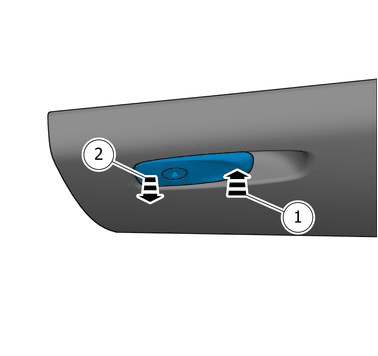

Release the catch.

Courtesy of VOLVO CARS CORPORATION

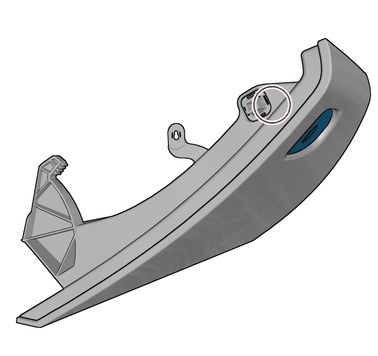

Loosen the marked detail/details.

INSTALLATION

To install, reverse the removal procedure.
