Driver's Knee Airbag [2017-2022]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Follow instructions about safety information pyrotechnical system. Refer to: [SAFETY INFORMATION PYROTECHNICAL SYSTEMS]

See information regarding the handling of non-deployed pyrotechnical parts. Refer to: [HANDLING NON-DEPLOYED PYROTECHNICAL PART]

Perform battery disconnecting and connecting. Refer to: [BATTERY DISCONNECTING AND CONNECTING]

WARNING:

The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 30 seconds before disconnecting or removing any SRS components.

Courtesy of VOLVO CARS CORPORATION

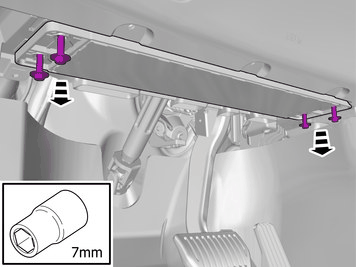

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

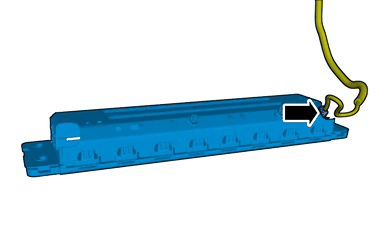

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

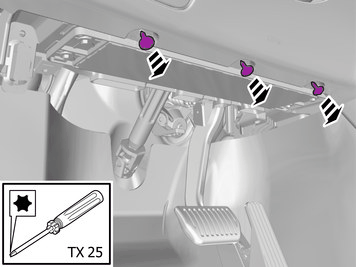

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Torque: Airbag to bracket, 5.5Nm

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Take extra care when handling supplemental restraint system (SRS) components.

CAUTION:

Pull carefully.

Remove the marked part.

Dismantle the connector ignition cable. Refer to: [IGNITER WIRE CONNECTOR]

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION
