Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Follow instructions about safety information pyrotechnical system. Refer to: [SAFETY INFORMATION PYROTECHNICAL SYSTEMS]

CAUTION:

Make sure that the steering wheel lock is inactivated before disconnecting the battery.

CAUTION:

Make sure the power seats are in the wanted position before disconnecting the battery.

Perform battery disconnecting and connecting. Refer to: [BATTERY DISCONNECTING AND CONNECTING]

Remove the following items:

sun sensor. Refer to: [SUN SENSOR]
Loudspeaker, dashboard. Refer to: [DASHBOARD SPEAKER]
right-hand side panel A-pillar. Refer to: [A-PILLAR TRIM PANEL]

Detach the following items:

bluetooth antenna. Refer to: [BLUETOOTH ANTENNA]
Temperature sensor, air duct, dash board, right. Refer to: [TEMPERATURE SENSOR, AIR DUCT, DASH BOARD, RIGHT]

Courtesy of VOLVO CARS CORPORATION

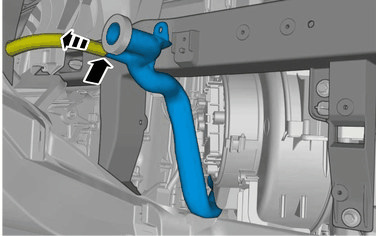

Undo the hose from the connection.

VEHICLES WITH AIRBORNE PARTICULATE MATTER SENSOR APMS

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Remove the cable harness clips.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Take extra care when handling supplemental restraint system (SRS) components.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M5, 5Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: M5, 5Nm

VEHICLES WITH GRAPHICAL HEAD UP DISPLAY (GHUD)

Courtesy of VOLVO CARS CORPORATION

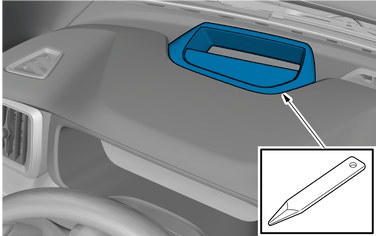

Use: Interior trim remover

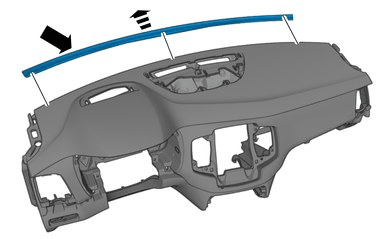

Remove the part carefully

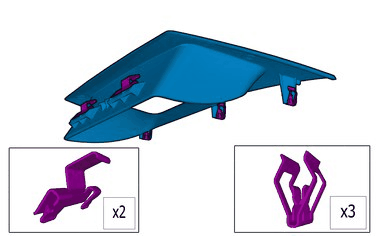

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

ALL VEHICLES

Remove the following items:

Switch module, instrument panel. Refer to: [SWITCH MODULE, INSTRUMENT PANEL]
storage box, driver's side. Refer to: [DRIVER SIDE STORAGE BOX]
left-hand side panel A-pillar. Refer to: [A-PILLAR TRIM PANEL]
Driver Information Module (DIM). Refer to: [DRIVER INFORMATION MODULE]

Loosen the temperature sensor, air duct, dashboard, left. Refer to: [TEMPERATURE SENSOR, AIR DUCT, DASH BOARD, LEFT]

Detach floor bracket. Refer to: [FLOOR CONSOLE]

Courtesy of VOLVO CARS CORPORATION

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

NOTE:

Note the position of the electrical connectors.

Remove the cable harness clips.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

Disconnect the connectors.

Remove the cable harness clips.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

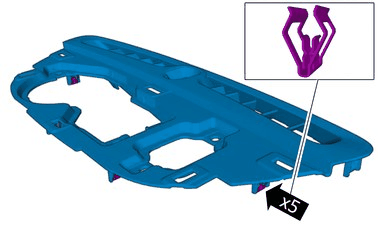

Remove the part carefully

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove panel steering column. Refer to: [PANEL STEERING COLUMN]

Courtesy of VOLVO CARS CORPORATION

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

Release the locks.
Remove the part carefully
Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: steering column to steering gear (steering shaft joint), 24Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Be extra careful when removing or installing this component.

CAUTION:

Make sure that the components are positioned correctly.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

NOTE:

Note the position of the electrical connectors.

Remove the cable harness clips.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

NOTE:

Note the position of the electrical connectors.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M5, 5Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: M5, 5Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M5, 5Nm

VEHICLES WITH 4-ZONE AIR CONDITIONING SYSTEM A/C

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the component is positioned correctly.

Remove the screw.

Remove the marked part.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the wiring harness does not catch.

NOTE:

This step requires the aid of another technician.

Remove the part carefully

Remove the marked part.

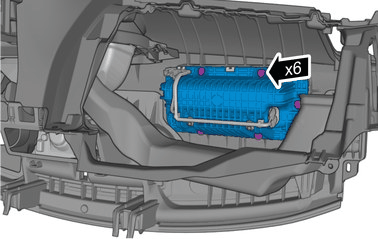

Courtesy of VOLVO CARS CORPORATION

TRANSFERRING COMPONENTS

Perform dashboard, transferring components. Refer to: Dashboard, Transferring Components procedure below.

DASHBOARD, TRANSFERRING COMPONENTS

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

See the safety information regarding pyrotechnic systems. Refer to: [SAFETY INFORMATION PYROTECHNICAL SYSTEMS]

Courtesy of VOLVO CARS CORPORATION

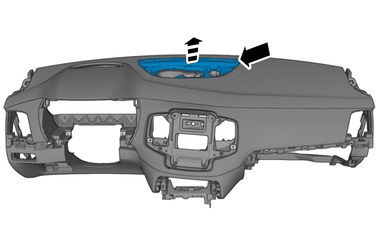

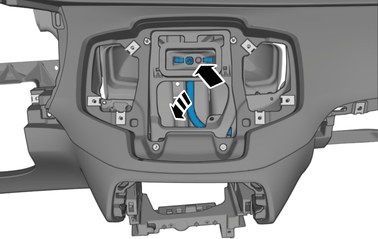

Remove the part carefully

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

WARNING:

Take extra care when handling supplemental restraint system (SRS) components.

Remove the screws.

Torque: Airbag, to Dash board, 9Nm

Courtesy of VOLVO CARS CORPORATION

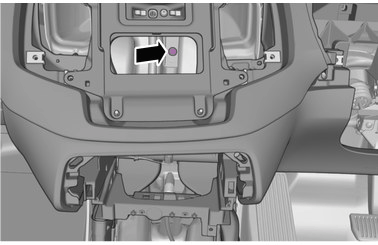

Remove the part carefully

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Note the routing of the lines and hoses.

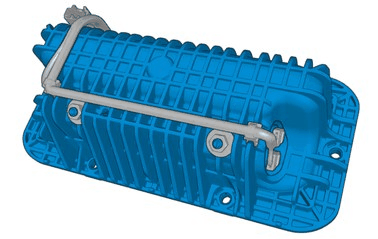

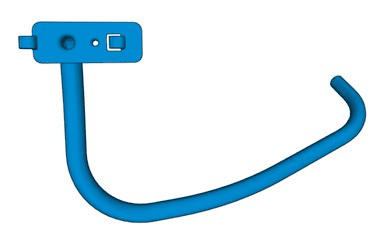

Remove the screw.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

NOTE:

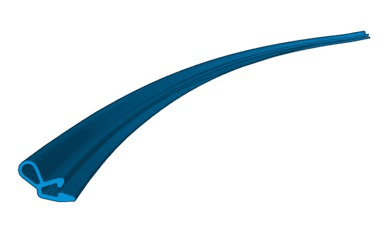

Make sure that the seal is correctly located.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

INSTALLATION

To install, reverse the removal procedure.

INSTALLATION

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the wiring harness does not catch.

NOTE:

This step requires the aid of another technician.

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

NOTE:

Note the position.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

To install, reverse the removal procedure.
