Belt Roller Middle Rear [2017-2022]: Removal
Removal steps in this procedure may contain installation details.
Follow instructions about safety information pyrotechnical system. Refer to: [SAFETY INFORMATION PYROTECHNICAL SYSTEMS]
See information regarding the handling of non-deployed pyrotechnical parts. Refer to: [HANDLING NON-DEPLOYED PYROTECHNICAL PART]
Perform battery disconnecting and connecting. Refer to: [BATTERY DISCONNECTING AND CONNECTING]
The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 30 seconds before disconnecting or removing any SRS components.

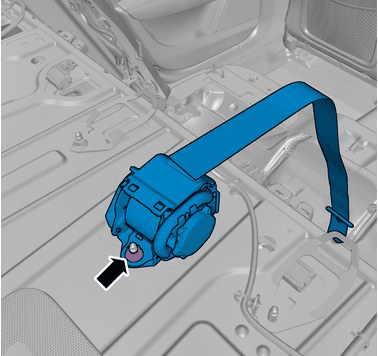

Note the correct location of the seat belt, which is shown in the graphic.
Remove the seat cushion, rear seat. Refer to: [SEAT CUSHION, REAR SEAT]
Remove parcel shelf. Refer to: [PARCEL SHELF]

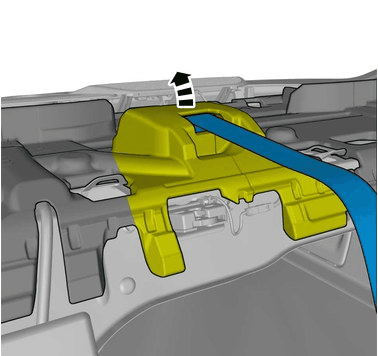

Fold marked part aside.

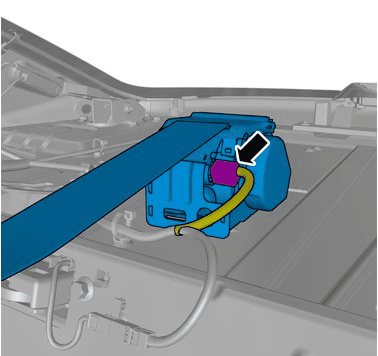

Disconnect the connector ignition cable. Refer to: [IGNITER WIRE CONNECTOR]
Disconnect the connector.
Remove the nut.
Remove the marked part.
Torque: Safety belt retractor rear to body, 40Nm
