Airbag, Passenger Side [2017-2022]: Removal
Removal steps in this procedure may contain installation details.
Follow instructions about safety information pyrotechnical system. Refer to: [SAFETY INFORMATION PYROTECHNICAL SYSTEMS]
See information regarding the handling of non-deployed pyrotechnical parts. Refer to: [HANDLING NON-DEPLOYED PYROTECHNICAL PART]
Perform battery disconnecting and connecting. Refer to: [BATTERY DISCONNECTING AND CONNECTING]
The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 30 seconds before disconnecting or removing any SRS components.
Remove glove compartment. Refer to: [GLOVE COMPARTMENT]

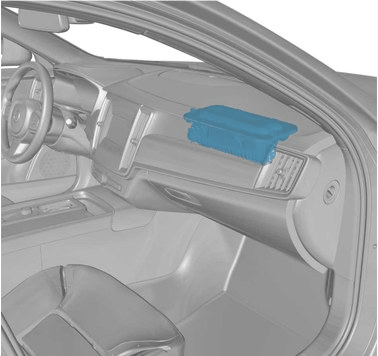

Orientation view
Release the connector's catch.
Disconnect the connector.
Remove the screws.
Remove the marked part.
Torque: Airbag, to Dash board, 9Nm
