Removal And Installation
REMOVAL
Removal steps in this procedure may contain installation details.
Remove Centre Console Switch Module CCSM. Refer to: [CENTER CONSOLE SWITCH MODULE CCSM]
The graphic shows the back of the component before removal.
Remove the marked part.
On both sides.
Torque: M6, 10Nm
Remove the screws.
Remove the screws.
Disconnect the connectors.
Disconnect the connector.

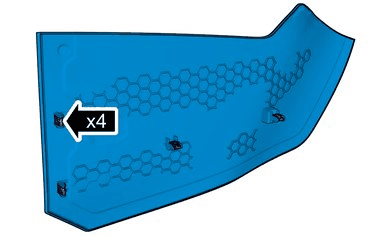

The graphic shows the back of the component before removal.
Use: Interior trim remover
Remove the marked part.
Torque: M6, 10Nm
Remove the screws.
Lift the marked component up
Disconnect the connector.
Fold marked part aside.
Perform battery disconnecting and connecting. Refer to: [BATTERY DISCONNECTING AND CONNECTING]
The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 30 seconds before disconnecting or removing any SRS components.

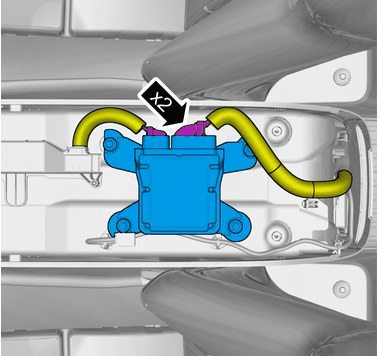

Disconnect the connectors.

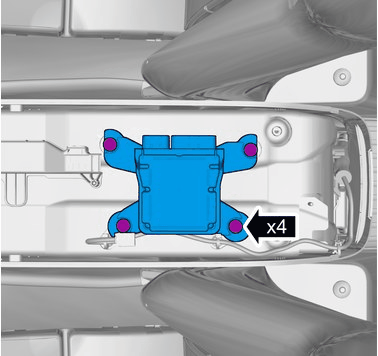

Torque: Supplemental Restraint System Module (SRS), to Body, 10Nm
Remove the screws.
Remove the marked part.
INSTALLATION
To install, reverse the removal procedure.
The following steps are only necessary when installing a new component.
Order and download the appropriate software according to: VIDA/Software/Hardware Changes
Calibrate according to: Diagnostics / Components / Control modules / Supplemental Restraint System Module (SRS) / Diagnostic sequences / Calibration of inertial measurement unit (IMU)
CHECK
Perform supplemental restraint system (SRS), post check. Refer to: [SUPPLEMENTARY RESTRAINT SYSTEM]
