Removal And Installation
REMOVAL
Removal steps in this procedure may contain installation details.

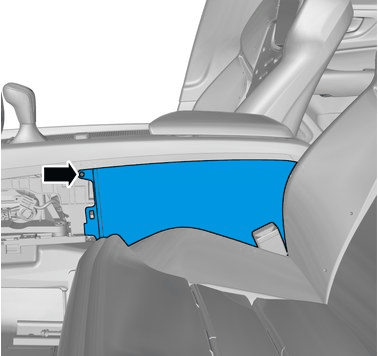

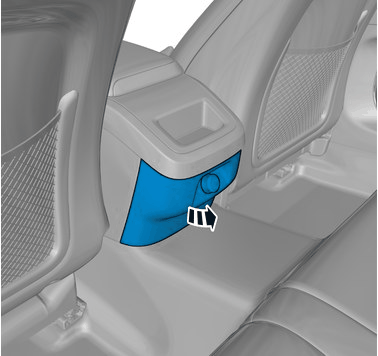

Loosen the marked detail.
Disconnect the connector.

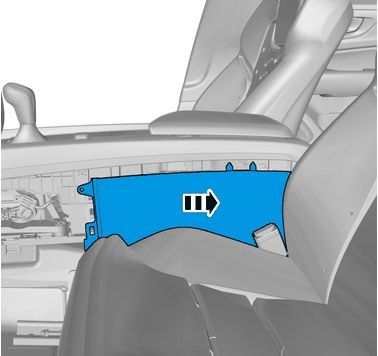

Remove the marked part.

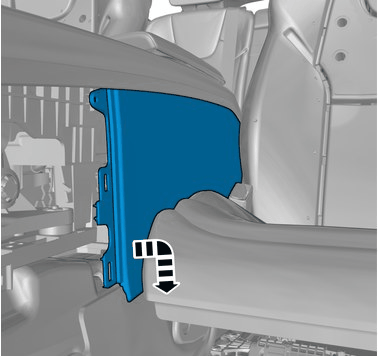

The graphic shows the back of the component before removal.
Remove the screw.

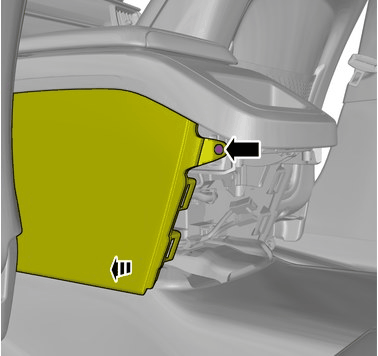

Loosen the marked detail.
On both sides.
On both sides.

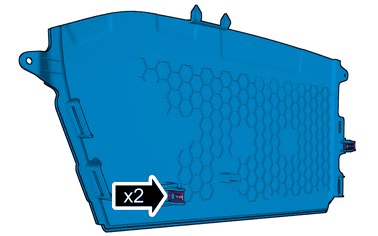

The graphic shows the back of the component before removal.

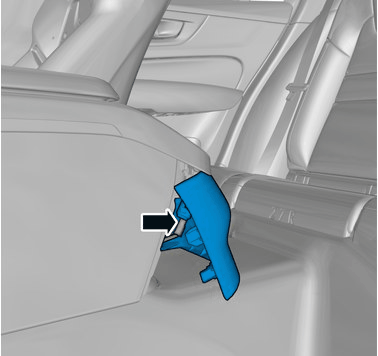

Remove the marked part.
On both sides.
Remove the screw.
On both sides.
Loosen the marked detail.
On both sides.

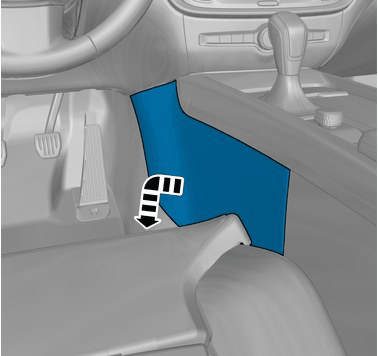

Remove the marked part.
On both sides.
Perform battery disconnecting and connecting. Refer to: [BATTERY DISCONNECTING AND CONNECTING]
The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 30 seconds before disconnecting or removing any SRS components.
Torque: Supplemental Restraint System Module (SRS), to Body, 10Nm

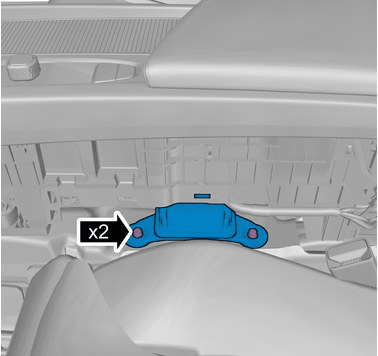

Remove the screws.

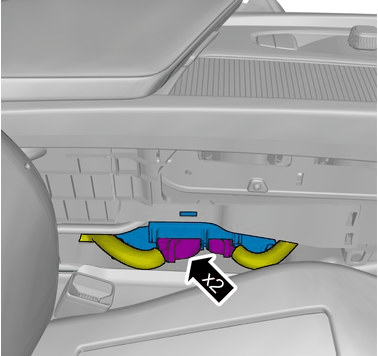

Disconnect the connectors.
Torque: Supplemental Restraint System Module (SRS), to Body, 10Nm

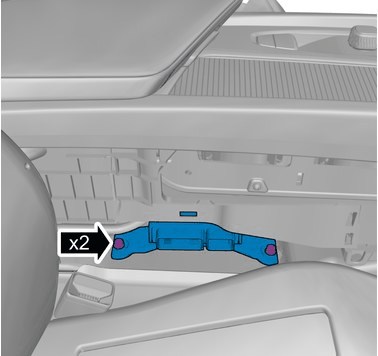

Remove the screws.
Remove the marked part.
INSTALLATION
To install, reverse the removal procedure.
The following steps are only necessary when installing a new component.
Order and download the appropriate software according to: VIDA/Software/Hardware Changes
Calibrate according to: Diagnostics / Components / Control modules / Supplemental Restraint System Module (SRS) / Diagnostic sequences / Calibration of inertial measurement unit (IMU)
CHECK
Perform supplemental restraint system (SRS), post check. Refer to: [SUPPLEMENTARY RESTRAINT SYSTEM]
