Parking Assistance Camera, Side [2017-2022]: Removal

Set the vehicle to Inactive mode, described in user mode. Refer to: [USAGE MODE]

Remove relevant side Turn indicator, external mirror. Refer to: [TURN INDICATOR, EXTERNAL MIRROR]

Courtesy of VOLVO CARS CORPORATION

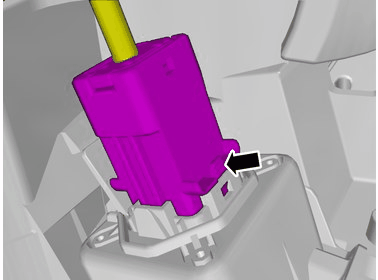

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

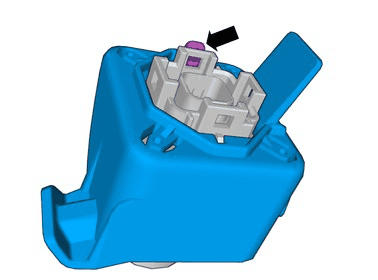

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

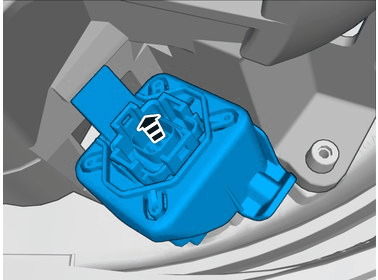

Release the catch.

Remove the marked part.
