Parking Assistance Camera, Front [2021-2022]: Removal

Set the vehicle to Inactive mode, described in user mode. Refer to: [USAGE MODE]

Remove casing bumper front. Refer to: [COVER BUMPER FRONT]

Courtesy of VOLVO CARS CORPORATION

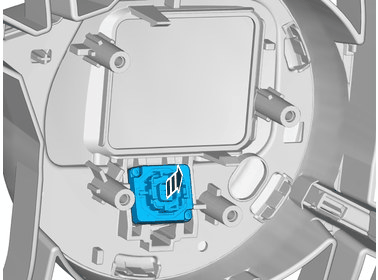

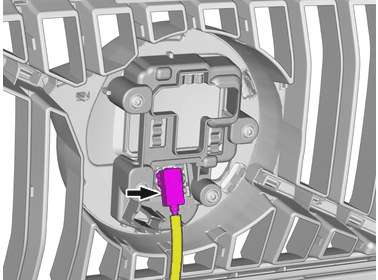

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

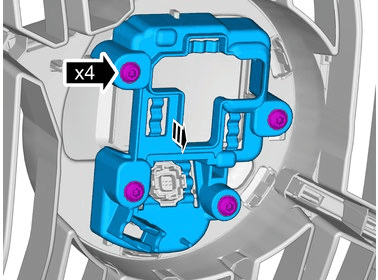

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
