Parking Assistance Camera (PAC) [2017-2018]: Removal

Remove passenger side sill molding front. Refer to: [FRONT SILL MOLDING]

Remove passenger side instrument panel lower. Refer to: [INSTRUMENT PANEL LOWER]

Courtesy of VOLVO CARS CORPORATION

When removing on right-hand drive cars, perform the procedures on the opposite side and/or mirrored.

Courtesy of VOLVO CARS CORPORATION

Remove the part carefully

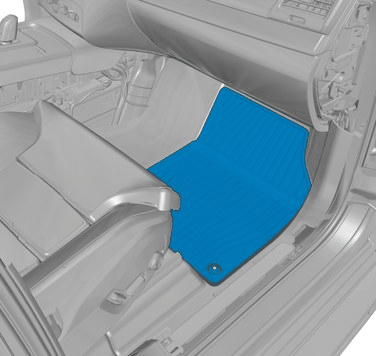

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

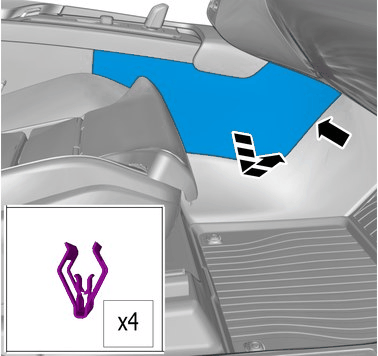

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

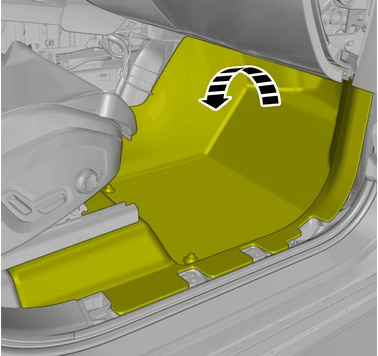

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connectors.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.
