Headlamp Washer Jet [2017-2022]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove casing bumper front. Refer to: [COVER BUMPER FRONT]
Remove the headlamp. Refer to: [HEADLAMPS]

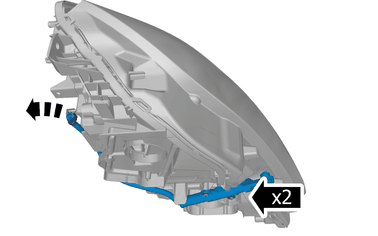

Remove the screws.
Remove the clip.
Remove the marked part.
Torque: Headlamp assembly, to console, 4.7Nm
