Graphical Head-Up Display (GHUD) [2017-2022]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the dashboard. Refer to: [DASHBOARD]

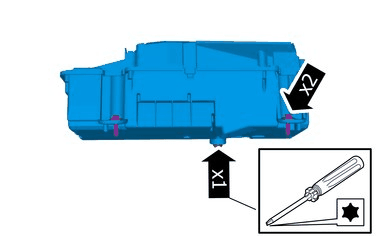

GLL1017301Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque:  M5, 5Nm

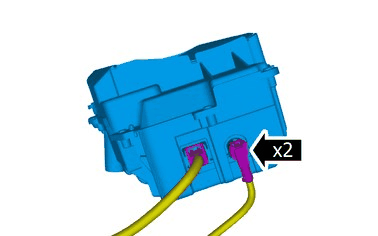

GLL1012847Courtesy of VOLVO CARS CORPORATION

Disconnect the connectors.
