Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Set the vehicle to Inactive mode, described in user mode. Refer to: [USAGE MODE]

LEFT HAND DRIVE VEHICLES

Remove the plenum cover. Refer to: [PLENUM COVER]

RIGHT-HAND DRIVE VEHICLES

Remove the wiper mechanism, windscreen. Refer to: [WIPER MECHANISM, WINDSHIELD]

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

Courtesy of VOLVO CARS CORPORATION

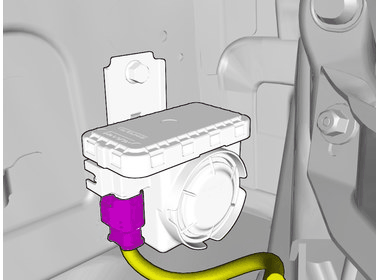

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

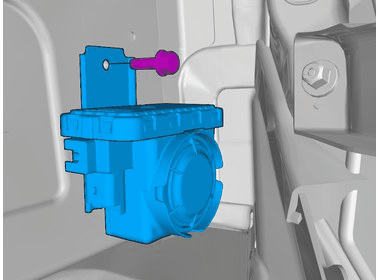

Remove the screw.

Remove the marked part.

Torque: M6, 10Nm

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

Remove the nut.

Torque: M6, 10Nm

Remove the marked part.

INSTALLATION

To install, reverse the removal procedure.

NOTE:

This step is only necessary when installing a new component.

Order and the appropriate download software according to VIDA/SOFTWARE.
