Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Remove Centre Console Switch Module CCSM. Refer to: [CENTER CONSOLE SWITCH MODULE CCSM]

ORIENTATION VIEW

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

Courtesy of VOLVO CARS CORPORATION

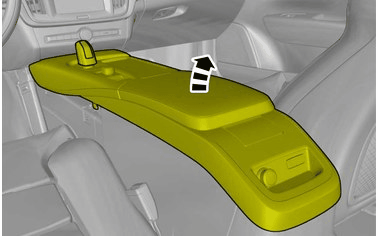

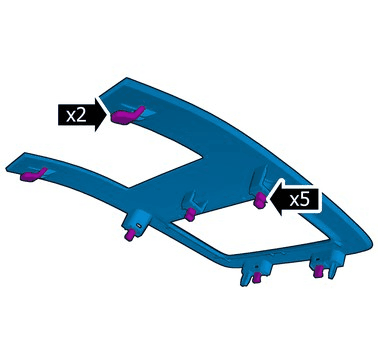

Remove the marked part.

On both sides.

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

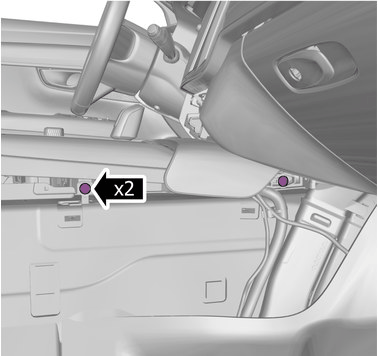

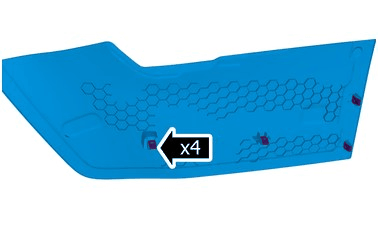

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

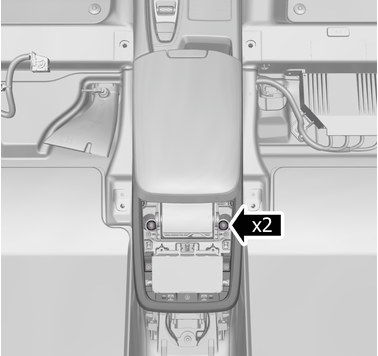

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

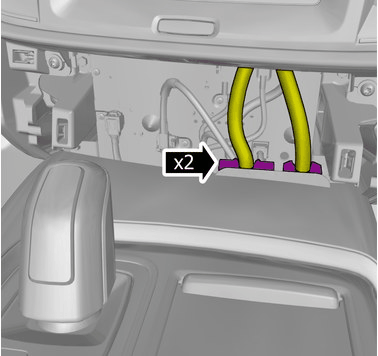

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

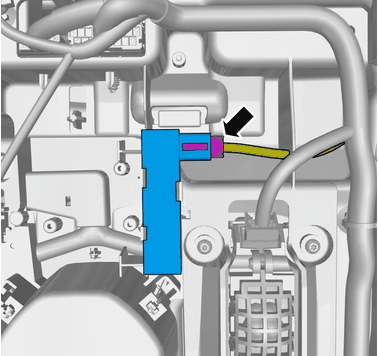

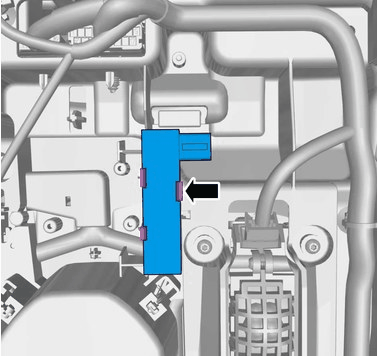

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

Courtesy of VOLVO CARS CORPORATION

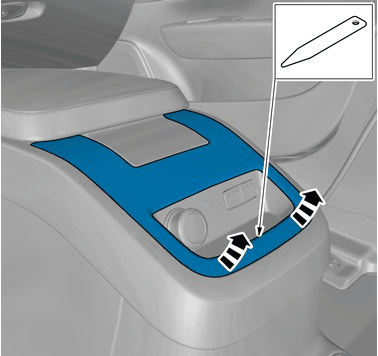

Use: Interior trim remover

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

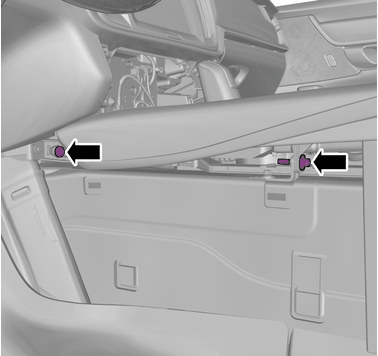

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

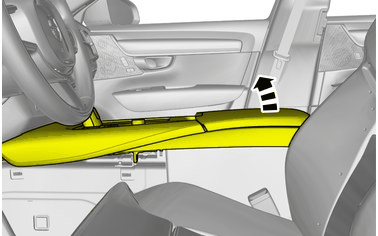

Lift the marked component up

Courtesy of VOLVO CARS CORPORATION

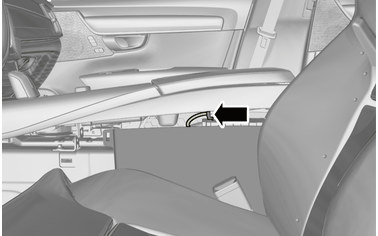

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

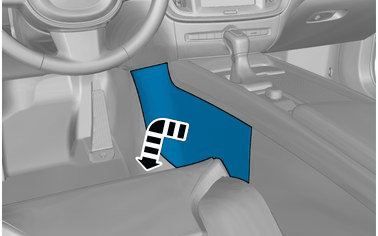

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

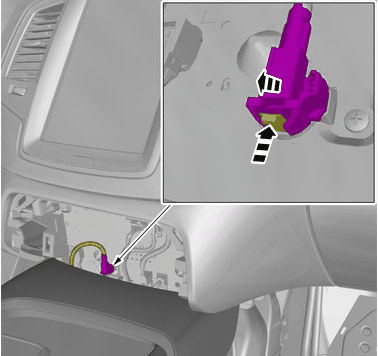

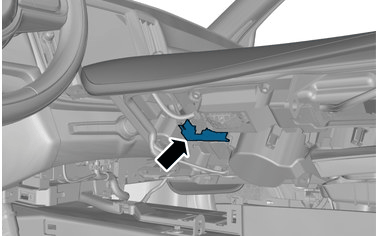

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Release the catches.

Remove the marked part.

INSTALLATION

To install, reverse the removal procedure.
