Active Safety Domain Master (ASDM) Cooling Fan [2021]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Set the vehicle to Inactive mode, described in user mode. Refer to: [USAGE MODE]

GLL1013521

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

GLL1035147

Courtesy of VOLVO CARS CORPORATION

NOTE:

The number of connectors may vary depending on the vehicle's equipment level.

Disconnect the connectors.

GLL1041867

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

GLL1039531

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

GLL1009372

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

GLL1008940

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

GLL1035610

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Fold marked part aside.

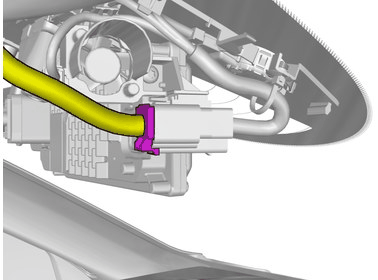

GLL1006207

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Fold marked part aside.

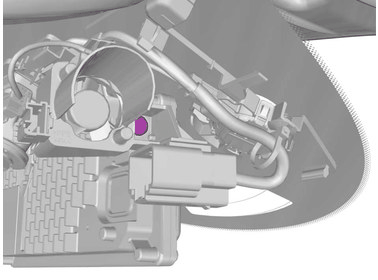

GLL1000116

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: Cooling fan, to Active Safety Domain Master (ASDM), 4Nm

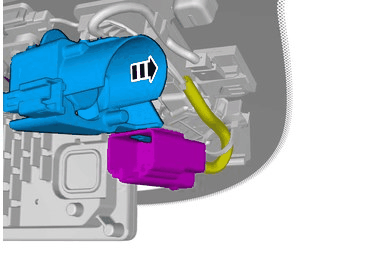

GLL1005810

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Disconnect the connector.
