Active Safety Domain Master (ASDM) [2022]: Removal

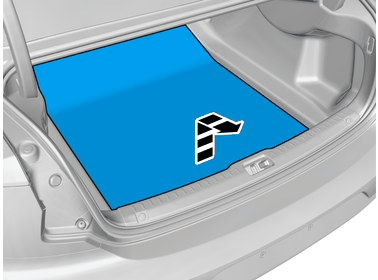

Set the vehicle to Inactive mode, described in user mode. Refer to: [USAGE MODE]

Courtesy of VOLVO CARS CORPORATION

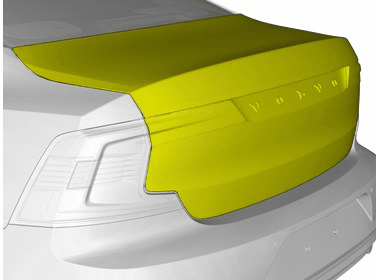

Open the tailgate.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

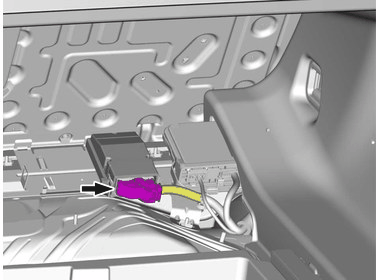

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

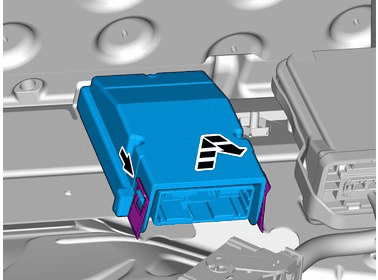

Release the catch.

Repeat on the other side.

Remove the marked parts.
