Throttle Body, Cleaning [2021-2022, B420T]

NOTE: For information on Volvo color coded illustrations, refer to: IMAGES .

Materials
Designation	Part number
Cleaner	31375489, (China 31375490), (USA/CAN 31375488)

REMOVAL

Remove the throttle body. Refer to: [THROTTLE BODY]

Courtesy of VOLVO CARS CORPORATION

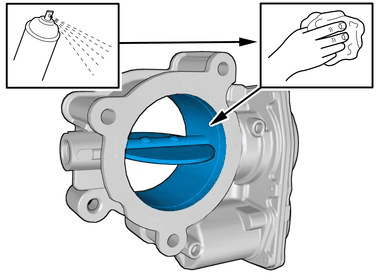

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Use: Cleaner, 31375489, (China 31375490), (USA/CAN 31375488)

Install throttle body. Refer to: [THROTTLE BODY]
