Removal And Installation
REMOVAL
Removal steps in this procedure may contain installation details.
Battery, disconnection. Refer to: [BATTERY DISCONNECTING AND CONNECTING]
Remove bushing push rod. Refer to: [BUSHING PUSH ROD]
Remove the wiper mechanism, windscreen. Refer to: [WIPER MECHANISM, WINDSHIELD]

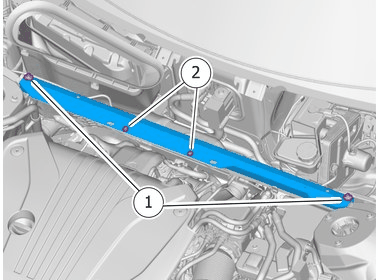

Remove the marked part.
- Torque: Strut and spring assembly bar to spring strut turret, 30Nm
- Torque: M6, 10Nm
ALTERNATIVE 1

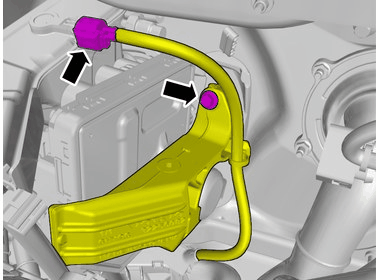

Disconnect the connector.
Remove the screw.
Fold marked part aside.
Torque: M8, 24Nm
ALTERNATIVE 2
Disconnect the connector.
Remove the screw.
Fold marked parts aside.
Torque: M8, 24Nm
ALL VEHICLES
Pull carefully.
Loosen the nuts.
Fold marked parts aside.
Torque: Ø6 mm diameter brake line, 14Nm
Disconnect the connector.
Fold marked part aside.
Remove the nuts.
Torque: Master cylinder, to Brake booster, 27Nm
Remove the marked part.
Remove the part carefully
TRANSFERRING COMPONENTS

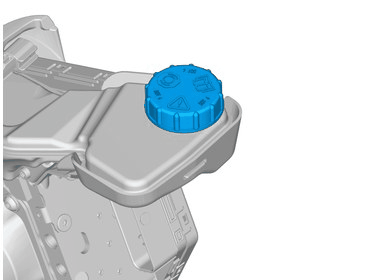

Remove the marked part.

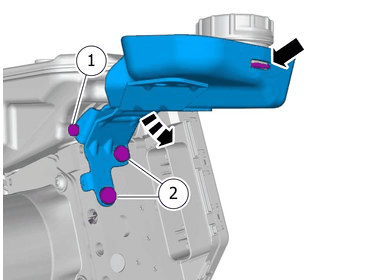

Remove the screws.
Remove the marked part.
- Torque: Protective plate, to brake fluid reservoir, 2.5Nm
- Torque: Protective plate, to hydraulic unit, 8.7Nm
Remove the screw.
Torque: Brake fluid reservoir, to hydraulic unit, 3.6Nm
Use suitable paper to absorb any escaping fluid.
Remove the marked part.
INSTALLATION

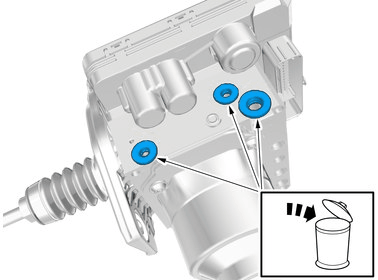

Make sure that the gaskets are correctly located.
Use new seals.
To install, reverse the removal procedure.
Perform Battery, connecting. Refer to: [BATTERY DISCONNECTING AND CONNECTING]
Perform bleeding air brake system. Refer to: [BRAKE SYSTEM BLEEDING]
Calibration according to: Diagnostics / Components / Control modules/ Central Electronic Module (CEM) / Diagnostic sequences / Calibration of brake pedal sensor and brake pedal angle sensor
