Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Set the vehicle to Inactive mode, described in user mode. Refer to: [USAGE MODE]

Remove bushing push rod. Refer to: [BUSHING PUSH ROD]

Remove the wiper mechanism, windscreen. Refer to: [WIPER MECHANISM, WINDSHIELD]

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.
Remove the marked part.
Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

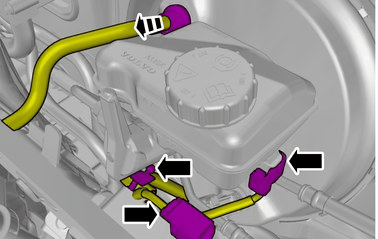

Undo the hose from the connection.

Disconnect the connectors.

Loosen the clip.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Make sure that new nuts are installed.

Remove the nuts.

Torque: Master cylinder, to Brake booster, 27Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the components are not forcibly bent.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.

Torque: M8, 24Nm

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

INSTALLATION

To install, reverse the removal procedure.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use new seals.

NOTE:

Make sure that the seal is correctly located.

Use: Thread locker normal, 1161053

Calibration according to: Diagnostics / Components / Control modules/ Central Electronic Module (CEM) / Diagnostic sequences / Calibration of brake pedal sensor and brake pedal angle sensor
