Hood Hinge Releaser [2019-2022]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Follow instructions about safety information pyrotechnical system. Refer to: [SAFETY INFORMATION PYROTECHNICAL SYSTEMS]

See information regarding the handling of non-deployed pyrotechnical parts. Refer to: [HANDLING NON-DEPLOYED PYROTECHNICAL PART]

Perform battery disconnecting and connecting. Refer to: [BATTERY DISCONNECTING AND CONNECTING]

WARNING:

The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 30 seconds before disconnecting or removing any SRS components.

Remove the wiper mechanism, windscreen. Refer to: [WIPER MECHANISM, WINDSHIELD]

APPLIES TO THE LEFT-HAND SIDE:

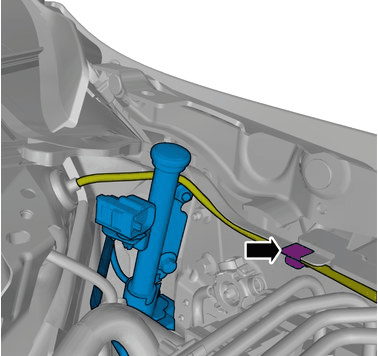

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Remove the marked part.

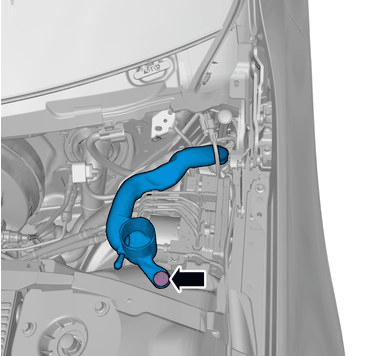

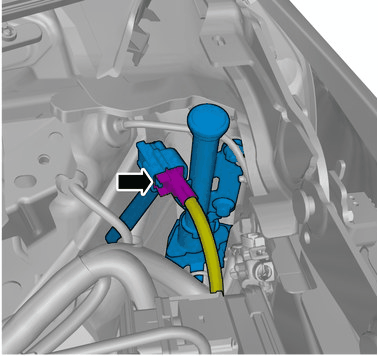

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Loosen the clip.

Fold marked part aside.

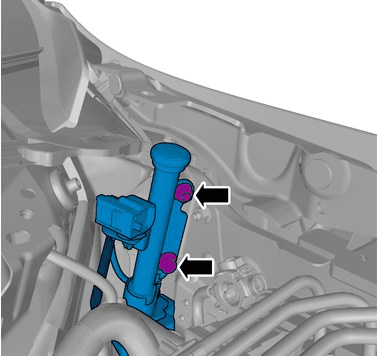

Courtesy of VOLVO CARS CORPORATION

Torque: Hood hinge releaser, to Bracket, 10Nm

Remove the nut.

Remove the screw.

Remove the marked part.

APPLIES TO THE RIGHT-HAND SIDE

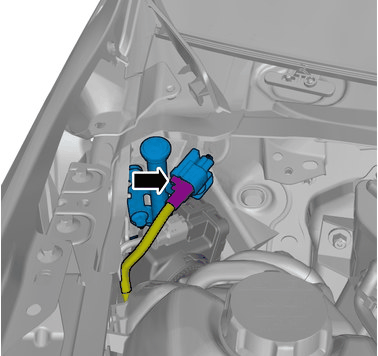

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

VEHICLES WITH ANTI-THEFT ALARM HORN WITH INTEGRAL BATTERY

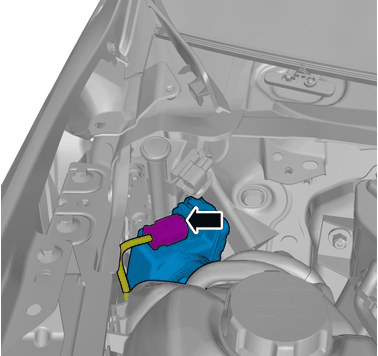

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

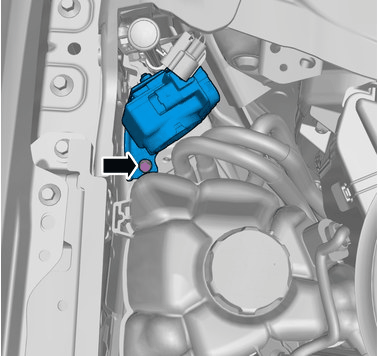

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Release the catch.

Loosen the marked detail.

Courtesy of VOLVO CARS CORPORATION

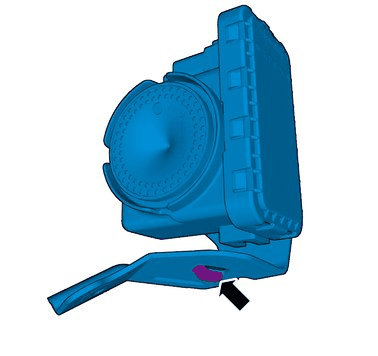

NOTE:

The graphic shows the back of the component before removal.

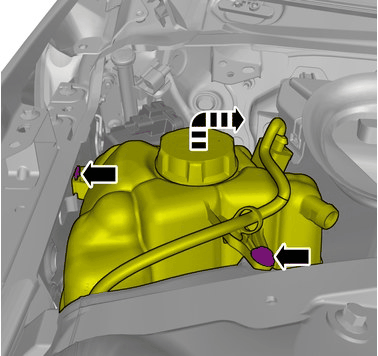

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

Remove the screw.

Remove the marked part.

ALL VEHICLES

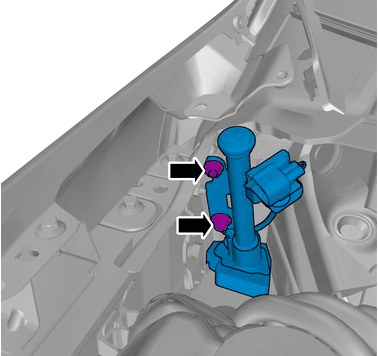

Courtesy of VOLVO CARS CORPORATION

Torque: Hood hinge releaser, to Bracket, 10Nm

Remove the nut.

Remove the screw.

Remove the marked part.
