Removal And Installation

REMOVAL

GLL1037494

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

GLL1022748

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

GLL1027500

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

GLL1017839

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

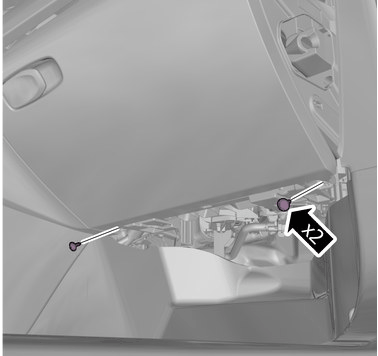

GLL1020822

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

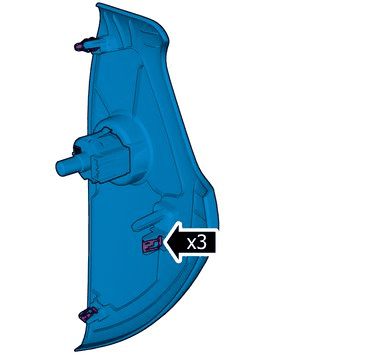

GLL1014069

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

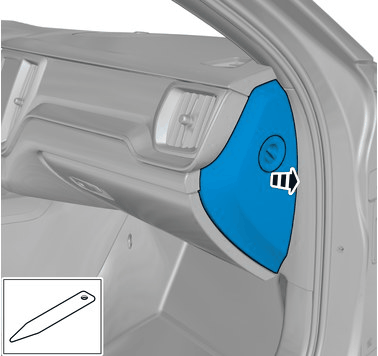

GLL1038788

Courtesy of VOLVO CARS CORPORATION

Loosen the marked detail.

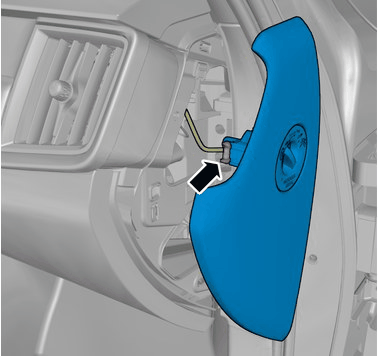

GLL1040581

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Remove the marked part.

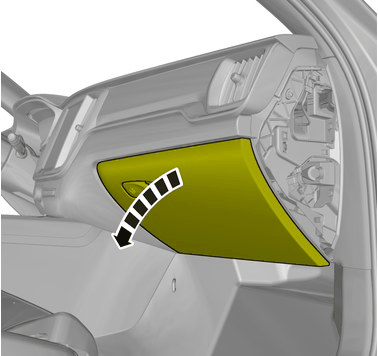

GLL1027587

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

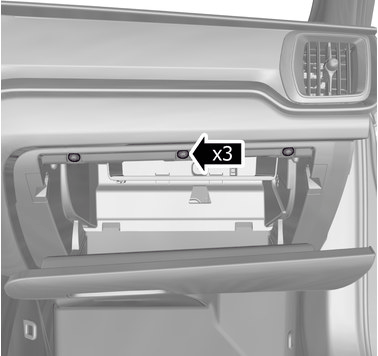

GLL1007125

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

GLL1035431

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

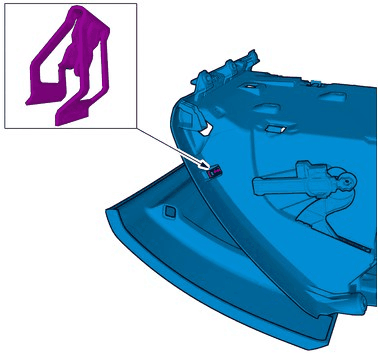

GLL1038927

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

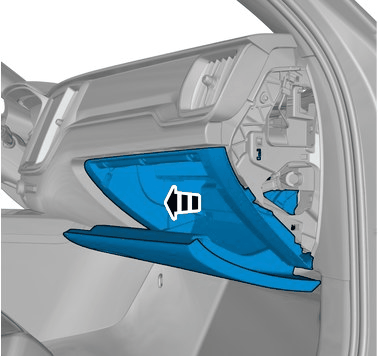

GLL1020604

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

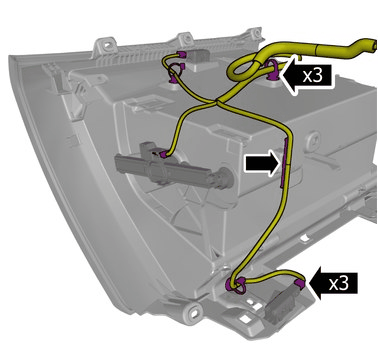

GLL1008924

Courtesy of VOLVO CARS CORPORATION

Remove the cable harness clips.

Disconnect the connectors.

TRANSFERRING COMPONENTS

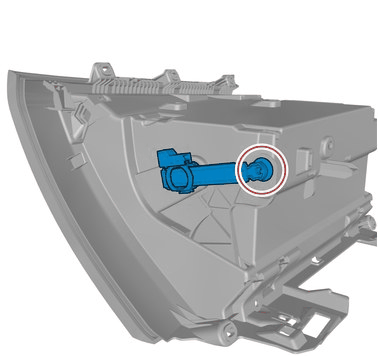

GLL1006214

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

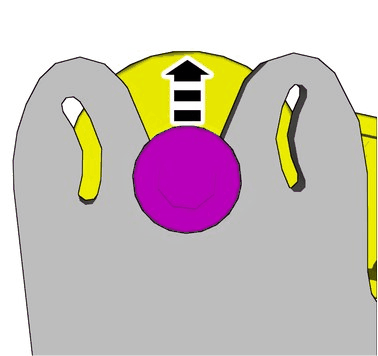

GLL1007592

Courtesy of VOLVO CARS CORPORATION

Release the lock.

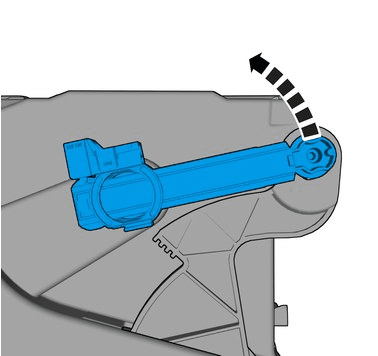

GLL1036390

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

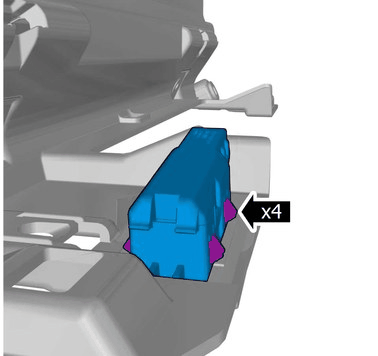

GLL1020103

Courtesy of VOLVO CARS CORPORATION

Release the catches.

Remove the marked part.

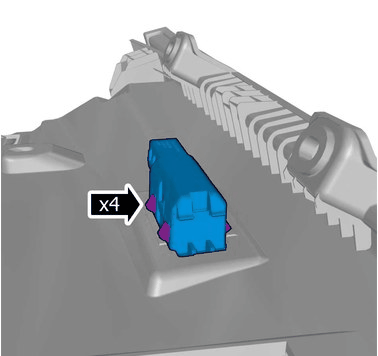

GLL1035764

Courtesy of VOLVO CARS CORPORATION

Release the catches.

Remove the marked part.

VEHICLES WITH GLOVE COMPARTMENT COOLING

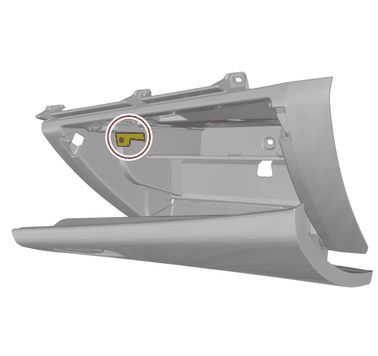

GLL1000370

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

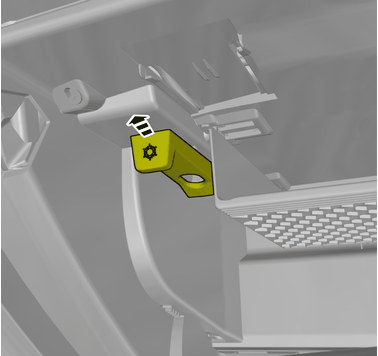

GLL1015477

Courtesy of VOLVO CARS CORPORATION

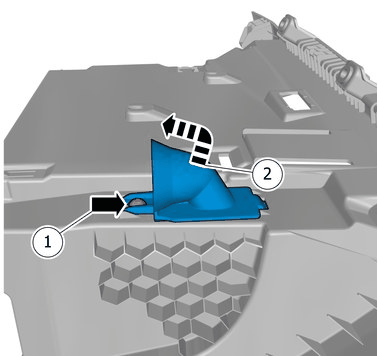

GLL1041735

Courtesy of VOLVO CARS CORPORATION

Remove the screw.
Remove the marked part.

INSTALLATION

To install, reverse the removal procedure.
