Air Suspension, Pre-Filling [2020]

NOTE: For information on Volvo color coded illustrations, refer to: IMAGES .

SPECIAL TOOLS

Courtesy of VOLVO CARS CORPORATION

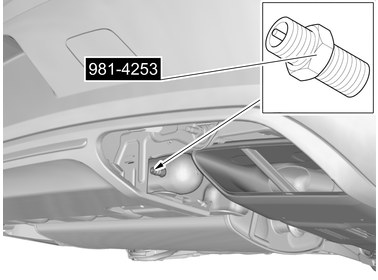

981 4253 Nipple
Tool number: 981 4253
Tool description: Nipple
Tool boards: 70

REMOVAL

Courtesy of VOLVO CARS CORPORATION

Right-hand side

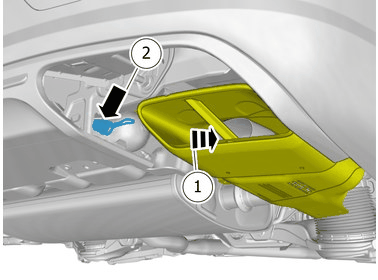

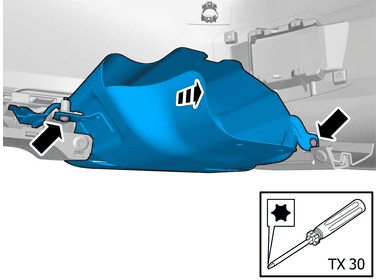

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

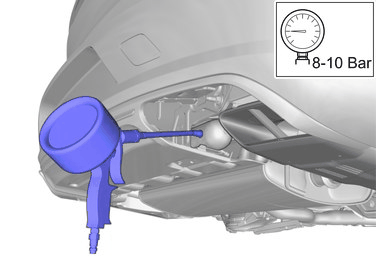

Fill to the specified pressure.

The specified pressure refers to normal working pressure.

Remove the Special Tool.

RESTORING

Reinstall the removed parts in reverse order.
