Removal And Installation

REMOVAL

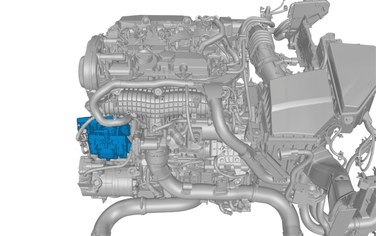

ORIENTATION VIEW

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Release the lock.

Undo the hose from the connection.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

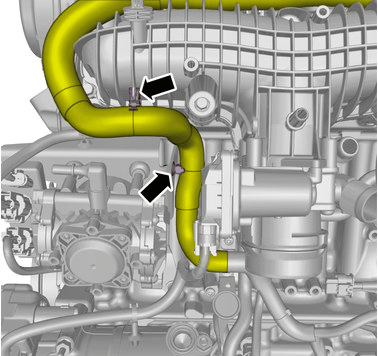

Loosen the clips.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

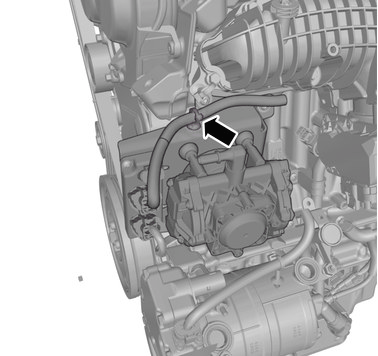

Loosen the clip.

Courtesy of VOLVO CARS CORPORATION

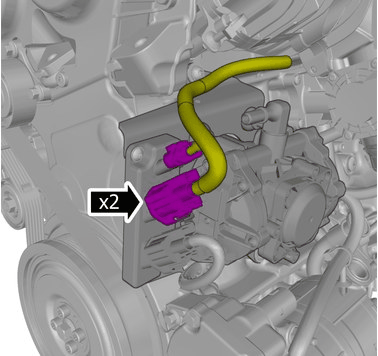

Release the connector catches.

Disconnect the connectors.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque:  M6, 10Nm

Remove the marked part.

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

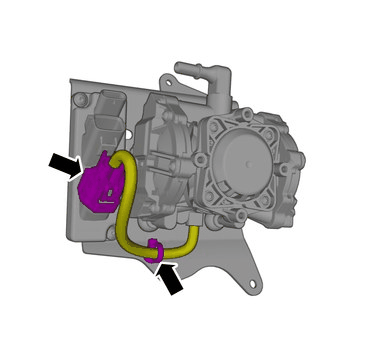

Remove the clip.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

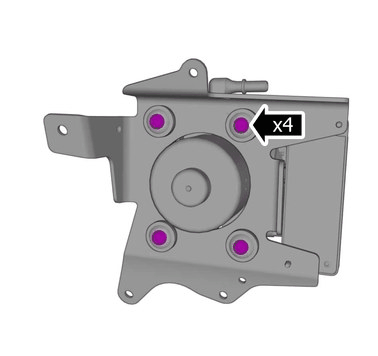

Remove the screws.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

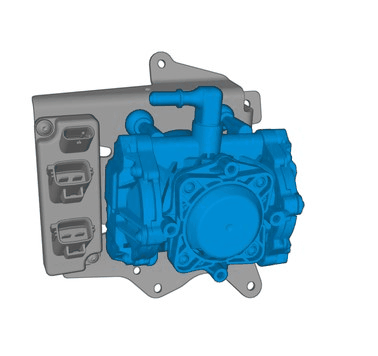

Remove the marked part.

INSTALLATION

To install, reverse the removal procedure.
