Pedal Box Spring Unit [2019, B4204T28]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove airbag driver's side knee. Refer to: [DRIVER'S KNEE AIRBAG]

Remove accelerator pedal. Refer to: [ACCELERATOR PEDAL]

Courtesy of VOLVO CARS CORPORATION

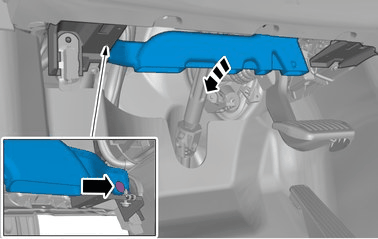

Remove the screw.

Torque: Air duct, to Cross car beam, 5Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

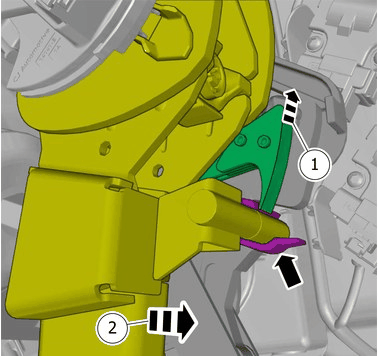

NOTE:

The screws may be difficult to access.

Remove the marked detail/details.
