Brake Pedal [2019, B4204T28]: Removal
Removal steps in this procedure may contain installation details.
Battery, disconnection. Refer to: [BATTERY DISCONNECTING AND CONNECTING]
See the safety information regarding pyrotechnic systems. Refer to: [SAFETY INFORMATION PYROTECHNICAL SYSTEMS]
Follow instruction for handling of non-deployed pyrotechnical part. Refer to: [HANDLING NON-DEPLOYED PYROTECHNICAL PART]
Remove airbag driver's side knee. Refer to: [DRIVER'S KNEE AIRBAG]
Remove accelerator pedal. Refer to: [ACCELERATOR PEDAL]
Remove the screw.
Torque: Air duct, to Cross car beam, 5Nm
Remove the marked part.

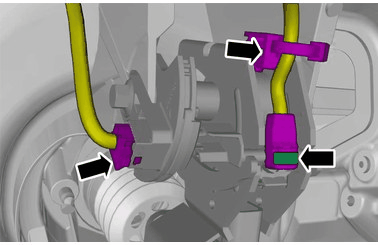

Disconnect the connectors.
Loosen the clip.
Remove bushing push rod. Refer to: [BUSHING PUSH ROD]
- Release the catch.
- Loosen the clip.
The screws may be difficult to access.
Remove the screws.
Remove the nut.
Remove the nut.
Remove the screw.

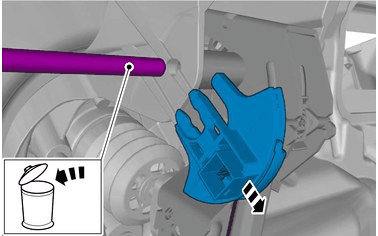

Remove the marked part.

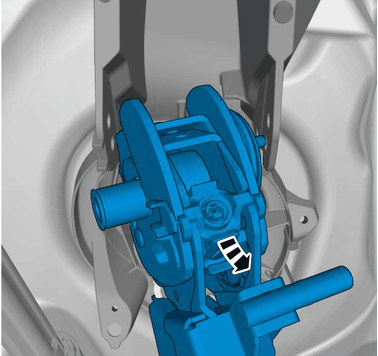

Remove the marked part.
HINT: It may be necessary to twist or turn the component.
