Brake Pedal [2019, B4204T28]: Installation
Make sure that the component is positioned correctly.

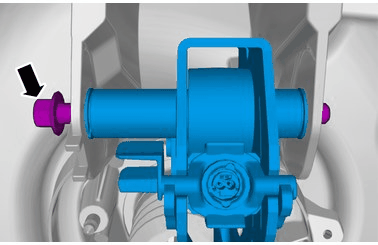

Make sure that a new bolt is installed.

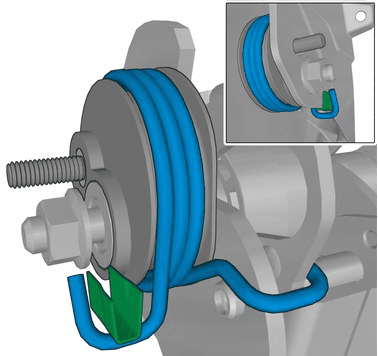

Do not fully tighten the nut yet.
Install the screw.

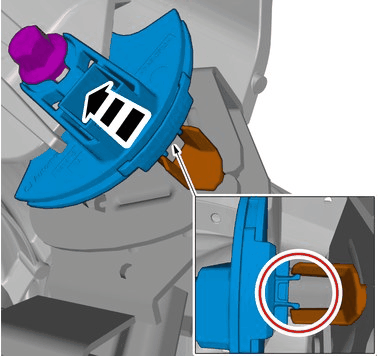

Make sure that the sensor is correctly installed.

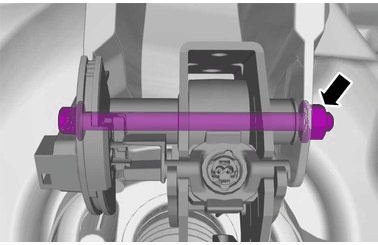

Tighten the nut.
Torque: Brake pedal, to Pedal box, 18Nm
Install the following items:
- Torque: Spring unit, to Pedal box (screw), 11Nm
- Torque: Spring unit, to Pedal box (nut), 7Nm
To install, reverse the removal procedure.
Make sure that the component is positioned correctly.
Perform Battery, connecting. Refer to: [BATTERY DISCONNECTING AND CONNECTING]
Perform supplemental restraint system (SRS), post check. Refer to: [SUPPLEMENTARY RESTRAINT SYSTEM]
Calibration according to: Diagnostics / Components / Control modules/ Central Electronic Module (CEM) / Diagnostic sequences / Calibration of brake pedal sensor and brake pedal angle sensor
Calibration according to: Diagnostics / Components / Control modules / Vehicle Dynamics Domain Master (VDDM) / Calibration of regenerative braking system
Perform test drive schedule. Refer to: [TEST DRIVE FORM DSTC/ BCM/ VDDM]
