Removal And Installation
REMOVAL
Removal steps in this procedure may contain installation details.
Perform High voltage battery disconnection. Refer to: [HIGH VOLTAGE BATTERY, DISCONNECTING AND CONNECTING]
Remove bushing push rod. Refer to: [BUSHING PUSH ROD]
Remove the wiper mechanism, windscreen. Refer to: [WIPER MECHANISM, WINDSHIELD]

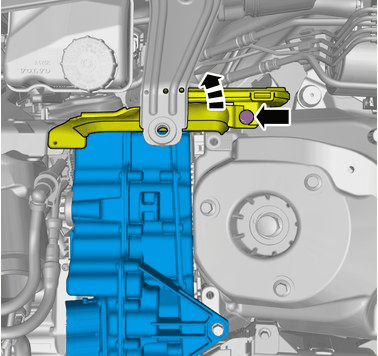

Remove the screws.
Remove the marked part.
Torque: M8, 24Nm
Loosen the hose clamp.
Remove the hose.

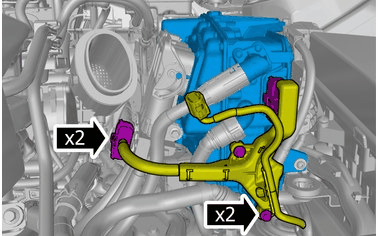

Remove the screws.
Disconnect the connectors.
Torque: M6, 10Nm

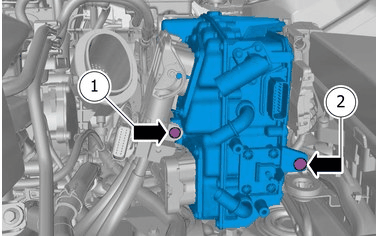

Remove the screws.
- Torque: M6, 10Nm
- Torque: M5, 5Nm

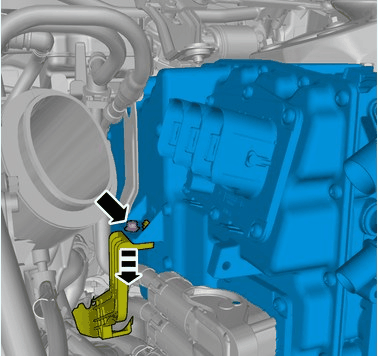

Remove the screw.
Torque: M6, 10Nm
Remove the screw.
Fold marked part aside.

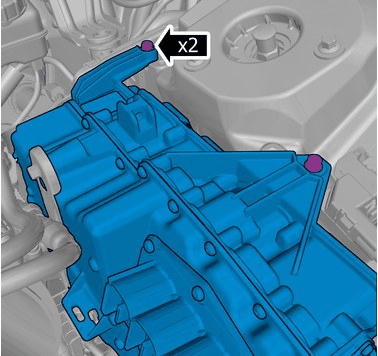

Remove the screws.
Torque: IGM, to Body frame, 13Nm

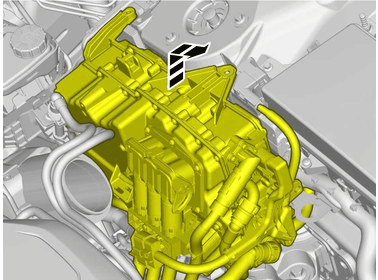

Lift the marked component forward.
Undo the hose from the connection.

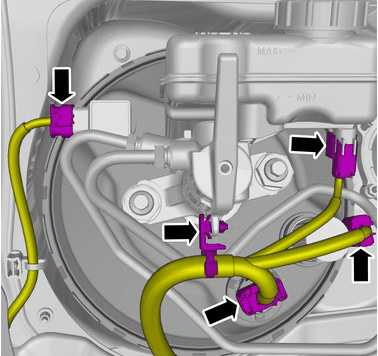

Disconnect the connectors.
Loosen the clip.
Make sure that new nuts are installed.
Remove the nuts.
Torque: Master cylinder, to Brake booster, 27Nm
Make sure that the components are not forcibly bent.
Fold marked part aside.
Remove the screws.
Remove the marked part.
HINT: It may be necessary to twist or turn the component.
Torque: M8, 24Nm
TRANSFERRING COMPONENTS
INSTALLATION
To install, reverse the removal procedure.
Use new seals.
Make sure that the seal is correctly located.
Use: Thread locker normal, 1161053
Connect High Voltage Battery. Refer to: [HIGH VOLTAGE BATTERY, DISCONNECTING AND CONNECTING]
Calibration according to: Diagnostics / Components / Control modules/ Central Electronic Module (CEM) / Diagnostic sequences / Calibration of brake pedal sensor and brake pedal angle sensor
