Setting The Geographic Area.

VEHICLES WITH ELECTRONIC COMPASS

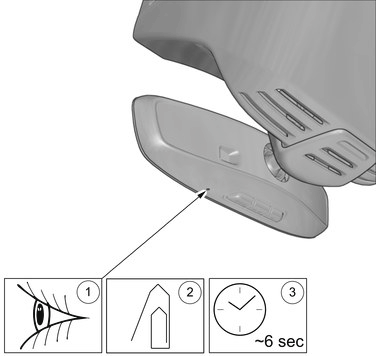

Set the vehicle to Active mode, described in user mode, refer to: USAGE MODE

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

A number between 1 and 15 appears for the set geographical area.

Follow the action information below.

Courtesy of VOLVO CARS CORPORATION

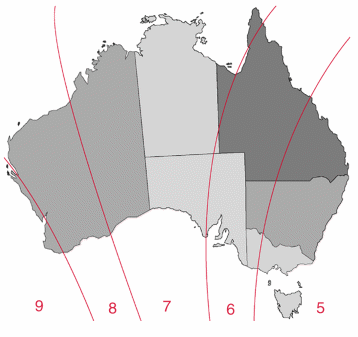

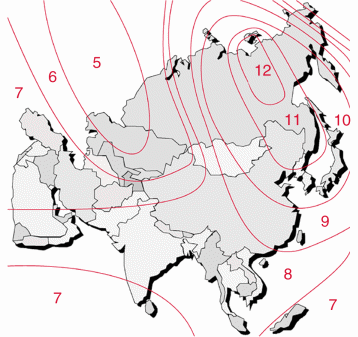

Press the button repeatedly until a number between 1 and 15 for the relevant geographical area appears.

After about 4 seconds, the display reverts to showing the compass direction.

Courtesy of VOLVO CARS CORPORATION

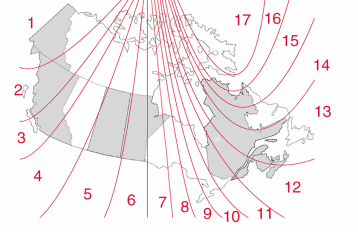

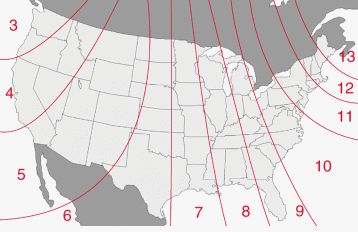

Press the button repeatedly until a number between 1 and 15 for the relevant geographical area appears.

After about 4 seconds, the display reverts to showing the compass direction.

Courtesy of VOLVO CARS CORPORATION

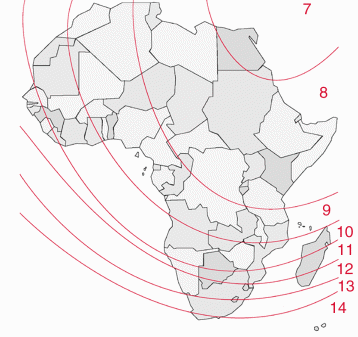

Press the button repeatedly until a number between 1 and 15 for the relevant geographical area appears.

After about 4 seconds, the display reverts to showing the compass direction.

Courtesy of VOLVO CARS CORPORATION

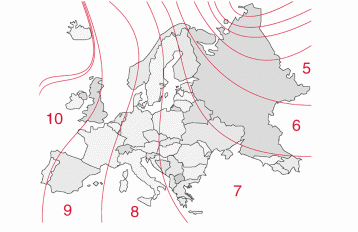

Press the button repeatedly until a number between 1 and 15 for the relevant geographical area appears.

After about 4 seconds, the display reverts to showing the compass direction.

Courtesy of VOLVO CARS CORPORATION

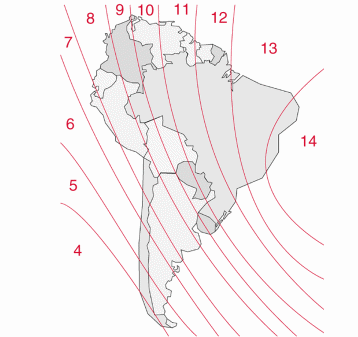

Press the button repeatedly until a number between 1 and 15 for the relevant geographical area appears.

After about 4 seconds, the display reverts to showing the compass direction.

Courtesy of VOLVO CARS CORPORATION

Press the button repeatedly until a number between 1 and 15 for the relevant geographical area appears.

After about 4 seconds, the display reverts to showing the compass direction.

Courtesy of VOLVO CARS CORPORATION

Press the button repeatedly until a number between 1 and 15 for the relevant geographical area appears.

After about 4 seconds, the display reverts to showing the compass direction.

CALIBRATION

VEHICLES WITH NON-HEATED WINDSCREEN

NOTE:

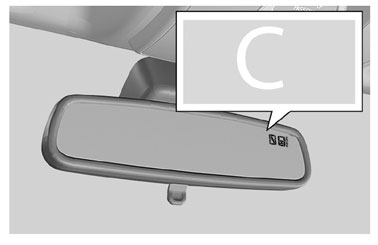

Calibration must be carried out if the component is replaced with new, or if the display shows "C".

Set the vehicle to Drive mode, described in user mode, refer to: USAGE MODE

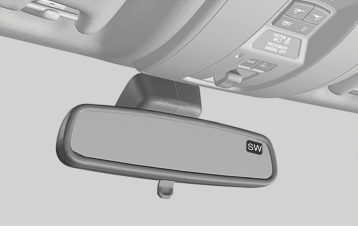

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Then drive at a maximum of 8 km/h (5 mph) in a circle (2-3 times) until the compass direction is displayed in the display again.

Courtesy of VOLVO CARS CORPORATION

VEHICLES WITH HEATED WINDSHIELD

NOTE:

Calibration must be carried out if the component is replaced with new, or if the display shows "C".

Set the vehicle to Drive mode, described in user mode, refer to: USAGE MODE

Courtesy of VOLVO CARS CORPORATION

Then drive at a maximum of 8 km/h (5 mph) in a circle (2-3 times) until the compass direction is displayed in the display again.

Courtesy of VOLVO CARS CORPORATION

NOTE:

The following calibration must be performed even if no calibration mark (C) appears in the mirror.

Now activate the heated windscreen.

The mirror is now in the calibration position again.

No C-marking appears in the mirror.

Ensure that the minimum amount of electrical consumers are activated, especially ensure that the windscreen wipers are off.

Then drive at a maximum of 8 km/h (5 mph) in a circle (2-3 times).

NOTE:

Confirmation that calibration is complete is not shown.
