Brake Disc Front, Checking [2018,-2022]

NOTE: For information on Volvo color coded illustrations, refer to: IMAGES .

SPECIAL TOOLS

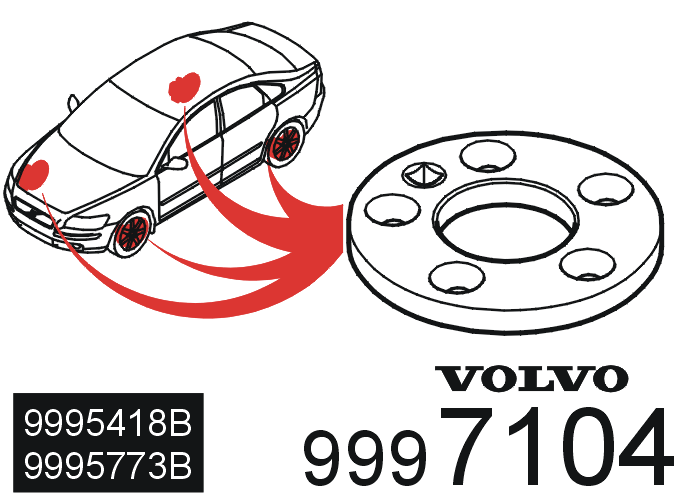

Courtesy of VOLVO CARS CORPORATION	999 7104 Clamp ring Tool number: 999 7104 Tool description: Clamp ring Tool boards: 61

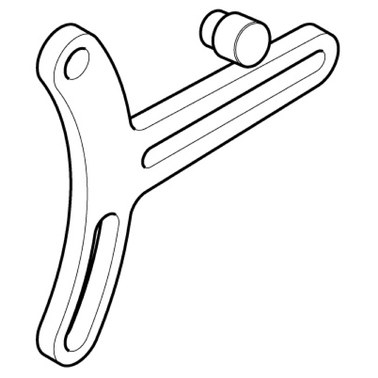

Courtesy of VOLVO CARS CORPORATION	999 5420 Mounting Tool number: 999 5420 Tool description: Mounting Tool boards: 50
Courtesy of VOLVO CARS CORPORATION	999 7555 Mounting Tool number: 999 7555 Tool description: Mounting Tool boards: 50
Courtesy of VOLVO CARS CORPORATION	981 3134 DIAL INDICATOR Tool number: 981 3134 Tool description: DIAL INDICATOR Tool boards:
Courtesy of VOLVO CARS CORPORATION	999 5418 Measuring kit (hub, brake disc and runout, b-vers) Tool number: 999 5418 Tool description: Measuring kit (hub, brake disc and runout, b-vers) Tool boards: 61

EXTRA INFORMATION

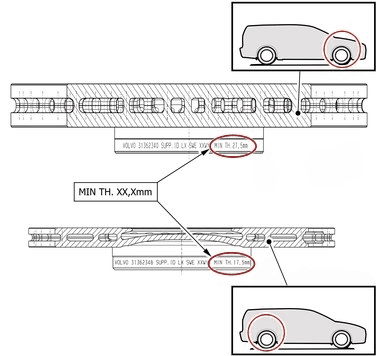

GLL1023500

Courtesy of VOLVO CARS CORPORATION

The minimum permitted brake disc thickness is read on the brake disc.

CHECK

Remove brake calliper, front. Refer to: FRONT BRAKE CALIPER

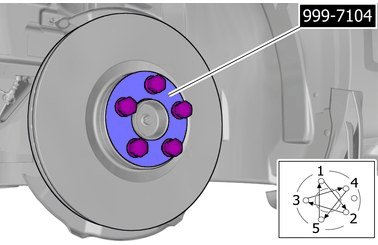

GLL1013281

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Special Tool: 999 7104 Clamp ring

Torque: Aluminum wheel rim to wheel hub

Stage 1: 4Nm
Stage 2: 50Nm
Stage 3: 140Nm

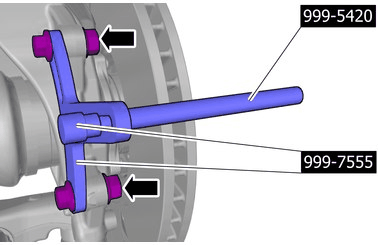

GLL1034010

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 5420 Mounting Special Tool: 999 7555 Mounting

Tighten the nuts.

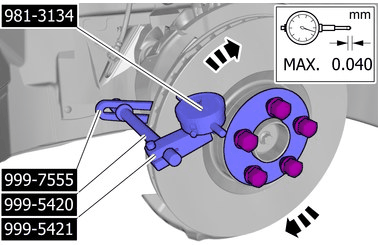

GLL1009004

Courtesy of VOLVO CARS CORPORATION

Special Tool: 981 3134 DIAL INDICATOR Special Tool: 999 5420 Mounting Special Tool: 999 5418 Measuring kit Special Tool: 999 7555 Mounting

Slowly rotate the brake disc and note the dial indicator gauge readings.

NOTE:

The following steps are only necessary when installing a new component.

Perform wheel hub front, checking. Refer to: WHEEL HUB FRONT, CHECKING

Remove the front brake disc. Refer to: FRONT BRAKE DISC

INSTALLATION

Install brake caliper front. Refer to: FRONT BRAKE CALIPER
