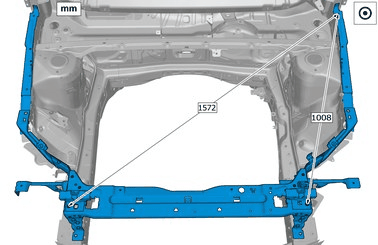

Front End [2018-2022]

NOTE: For information on Volvo color coded illustrations, refer to: IMAGES .

Courtesy of VOLVO CARS CORPORATION

Measure from the center.
Measure from the edge.
Measure from the cut edge

Courtesy of VOLVO CARS CORPORATION

Measurement takes place from the bottom of the recess. See image. If only a measuring point symbol is shown this applies to both measuring points. Otherwise the symbols are shown on one side each of the measurement designation in the figure.

Courtesy of VOLVO CARS CORPORATION
