Start And Brake Switch Module SBSM [2017-2019, B4204T23 | 2017-2022, B4204T27 | 2021-2022, B420T]: Removal

Remove floor console frame. Refer to: [FLOOR CONSOLE FRAME]

GLL1012690

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

GLL1025046

Courtesy of VOLVO CARS CORPORATION

Use: Interior trim remover

Loosen the marked detail/details.

GLL1036207

Courtesy of VOLVO CARS CORPORATION

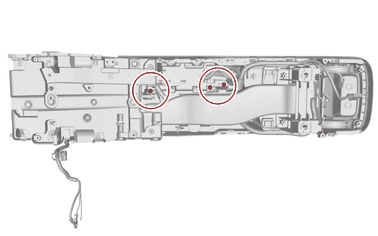

Remove the screws.

GLL1005133

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

GLL1041480

Courtesy of VOLVO CARS CORPORATION

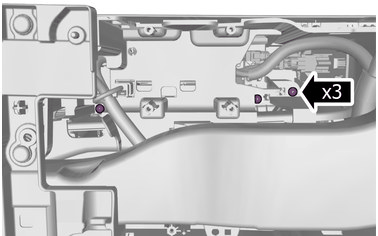

Remove the screws.

GLL1015550

Courtesy of VOLVO CARS CORPORATION

NOTE:

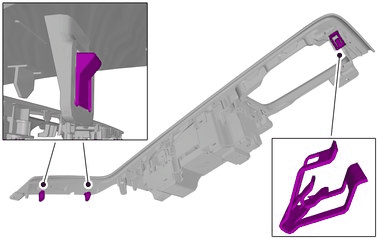

The graphic shows the back of the component before removal.

GLL1014503

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

GLL1033579

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the component.

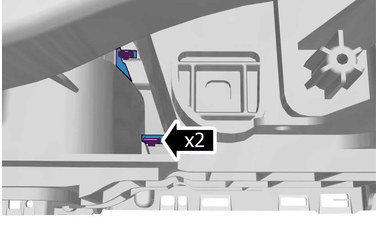

Release the catches.

GLL1026456

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the component.

Loosen the marked detail/details.

GLL1022217

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Remove the marked part.

GLL1016003

Courtesy of VOLVO CARS CORPORATION

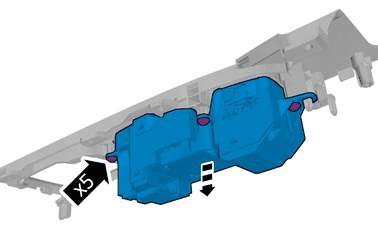

Remove the screws.

Remove the marked part.
