Rear Brake Flexible Hose [2018-2022]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
See information about safety information brake system. Refer to: SAFETY INFORMATION BRAKE SYSTEM
Remove the wheel. Refer to: WHEELS
Special Tool: 999 7394 Pedal lock
WARNING:
Be prepared to collect escaping fluid.
NOTE:
Use new seals.

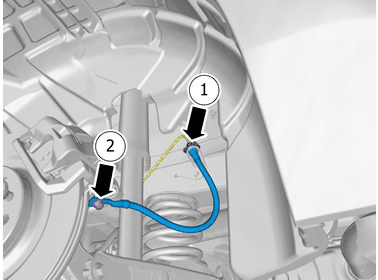

Detach the following items:
- Torque: Ø6 mm diameter brake line, 14Nm
- Torque: Brake hose (screw) to brake caliper, 42Nm
Remove the marked part.
