Brake Disc Rear, Checking [2016-2020]: Removal
Remove brake caliper rear, refer to: REAR BRAKE CALIPER
CHECK
NOTE:
Make sure that the mating faces are clean and free of foreign material.

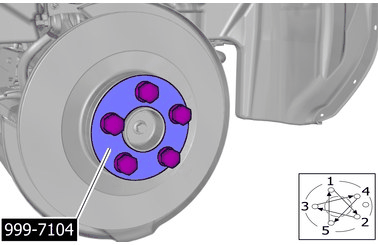

Refer to: Special Tool: 999 7104
Torque:Aluminum wheel rim to wheel hub,
- Stage 1: 4 Nm
- Stage 2: 50 Nm
- Stage 3: 140 Nm
Tighten the nuts.

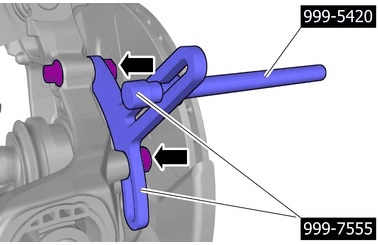

Refer to: Special Tool: 999 5420 and Special Tool: 999 7555

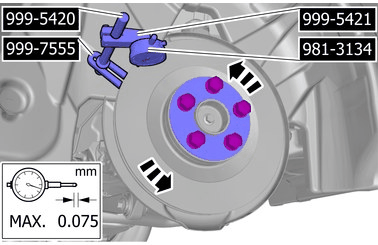

Slowly rotate the brake disc and note the dial indicator gauge readings.
Refer to: Special Tool: 999 5420 , Special Tool: 999 5418 , Special Tool: 981 3134 and Special Tool: 999 7555
