Vacuum Pump, Brake Booster [2020, B4204T23 | 2020, B4204T27 | 2020, B4204T39]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

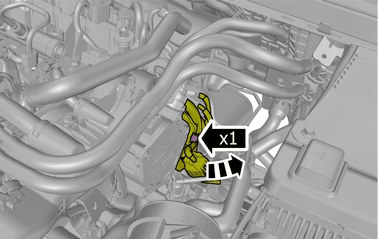

Loosen the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

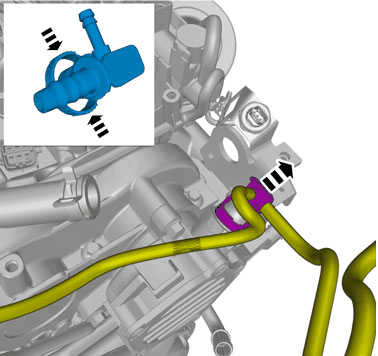

Loosen the hose clamp.

Undo the hose from the connection.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Loosen the hose clamps.

Remove the marked part.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Release the lock.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Fold marked part aside.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the area around the component is clean and free of foreign material.

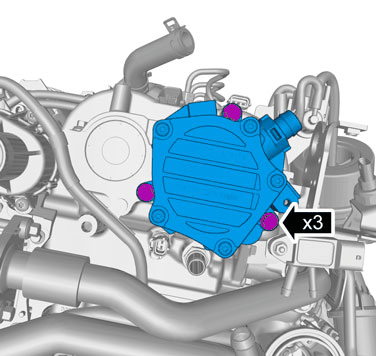

Remove the screws.

Remove the marked part.

Torque: M7, 17Nm
