Removal And Installation

REMOVAL

Battery, disconnection, refer to: BATTERY DISCONNECTING AND CONNECTING

Remove bushing push rod, refer to: BUSHING PUSH ROD

Remove the wiper mechanism, windscreen, refer to: WIPER MECHANISM, WINDSHIELD

Courtesy of VOLVO CARS CORPORATION

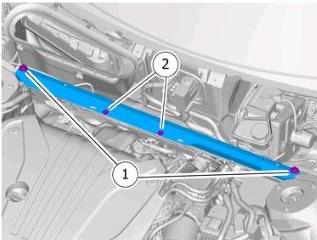

Remove the marked part.

1. Torque:  Strut and spring assembly bar to spring strut turret, 30 Nm
2. Torque:  M6, 10Nm

ALTERNATIVE 1

Courtesy of VOLVO CARS CORPORATION

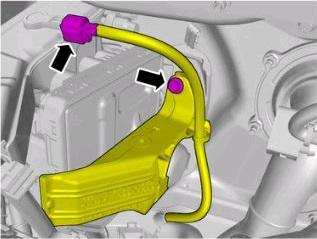

Disconnect the connector.

Remove the screw.

Fold marked parts aside.

Torque:  M8, 24Nm

ALTERNATIVE 2

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Remove the screw.

Fold marked parts aside.

Torque:  M8, 24Nm

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

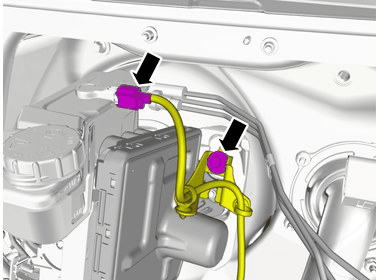

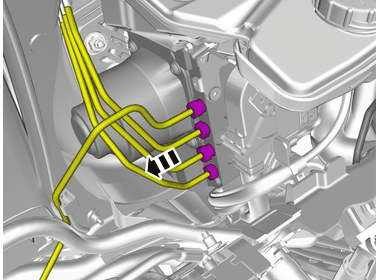

Loosen the nuts.

Fold marked parts aside.

Torque:  Ø6 mm diameter brake line, 14Nm

Courtesy of VOLVO CARS CORPORATION

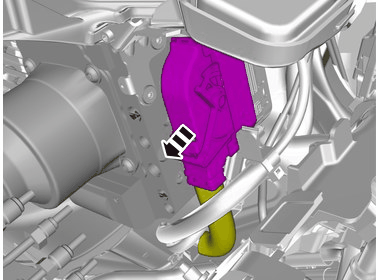

Disconnect the connector.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

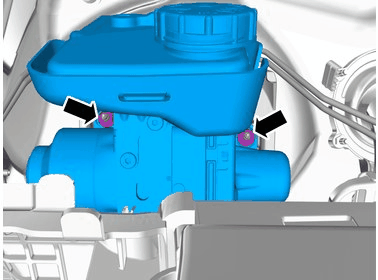

Remove the nuts.

Torque:  Master cylinder, to Brake booster, 50Nm

Courtesy of VOLVO CARS CORPORATION

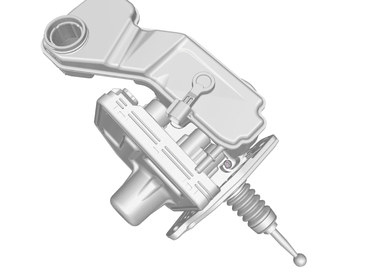

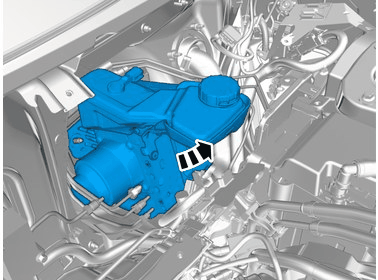

Remove the marked part.

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

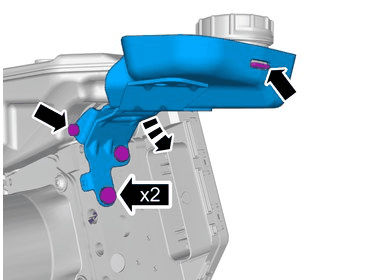

Remove the screws.

Remove the marked part.

Torque:  Brake fluid reservoir in master cylinder, 3.5Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque:  Brake fluid reservoir in master cylinder, 3.5Nm

Courtesy of VOLVO CARS CORPORATION

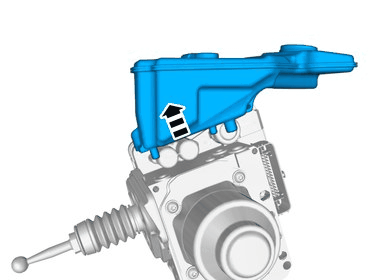

Remove the marked part.

INSTALLATION

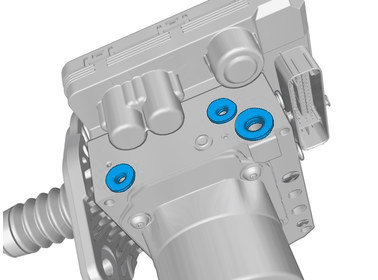

Courtesy of VOLVO CARS CORPORATION

To install, reverse the removal procedure.

Perform Battery, connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

Perform bleeding air brake system, refer to: BRAKE SYSTEM BLEEDING

Calibration according to: Diagnostics / Components / Control modules/ Central Electronic Module (CEM) / Diagnostic sequences / Calibration of brake pedal sensor and brake pedal angle sensor
