Reservoir, Brake Fluid [2019, TG-81SC; TG-81SC AWD | 2018, 2020, B4204T23; B4204T27, TG-81SC; TG-81SC AWD | 2018, B4204T28, TG-81SC]: Removal

Remove the wiper mechanism, windscreen, refer to:WIPER MECHANISM, WINDSHIELD

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

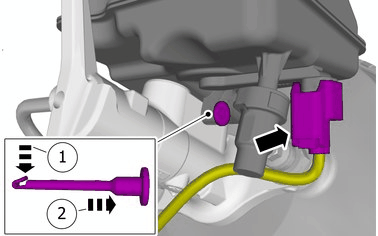

Disconnect the connector.

Remove the clip.

Courtesy of VOLVO CARS CORPORATION

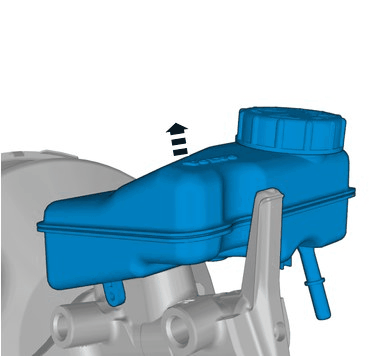

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

NOTE:

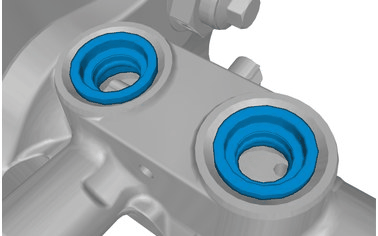

Make sure that the seal is correctly located.

NOTE:

Make sure that the mating faces are clean and free of foreign material.
