Reservoir, Brake Fluid [2016-2017]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the wiper mechanism, windscreen, refer to: WIPER MECHANISM, WINDSHIELD

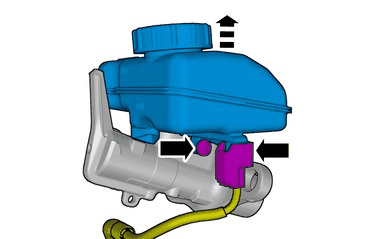

GLL1022910Courtesy of VOLVO CARS CORPORATION
WARNING:

Be prepared to collect escaping fluid.

Disconnect the connector.

Loosen the screws.

Torque:  Brake fluid reservoir in master cylinder, 3.5Nm
