Master Cylinder, Brake [2016-2017]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Follow instructions about safety information brake system, refer to: SAFETY INFORMATION BRAKE SYSTEM
Remove the wiper mechanism, windscreen, refer to: WIPER MECHANISM, WINDSHIELD
WARNING:
Be prepared to collect escaping fluid.
CAUTION:
Make sure that all openings are sealed.
NOTE:
Make sure that the seal is correctly located.

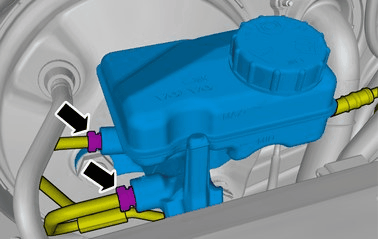

Torque: Ø8 mm diameter brake line, 18Nm
WARNING:
Make sure that new nuts are installed.

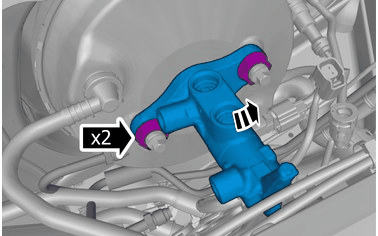

Torque: Master cylinder, to Brake booster, 50Nm
Loosen the nuts.
Disconnect the connector.
