Brake Fluid [2016-2020]: Preparation

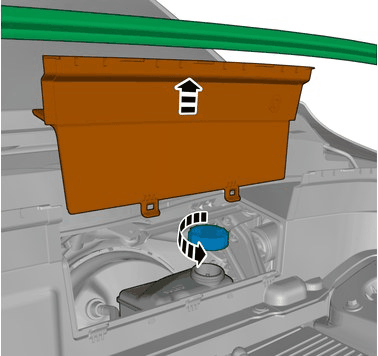

Remove the marked detail/details.
Use: Liquid extractor
Remove rear wheel, refer to: WHEELS
NOTE:
Always follow the manufacturer's instructions when handling the equipment.
Use: Air bleeding equipment
Use: Brake fluid, 9437430
Torque: Nipple bleeding brake system, 15Nm
VEHICLES WITH VACUUM-LESS BRAKE SYSTEM
Bleeding according to: Diagnostics/ Components/ Control modules / Brake Control Module (BCM2)/ Diagnostic sequences/ Filling and bleeding of the vacuum-less brake system
