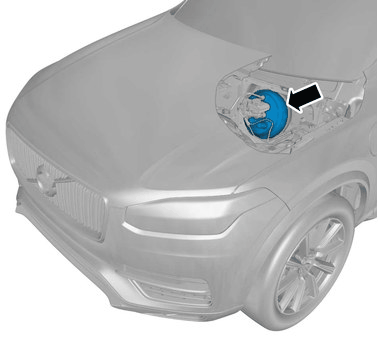

Removal And Installation

REMOVAL

Courtesy of VOLVO CARS CORPORATION

Battery, disconnection, refer to: BATTERY DISCONNECTING AND CONNECTING

Remove bushing push rod. refer to: BUSHING PUSH ROD

Remove the wiper mechanism, windscreen, refer to: WIPER MECHANISM, WINDSHIELD

Courtesy of VOLVO CARS CORPORATION

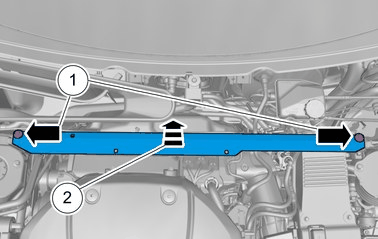

1. Loosen the screws.
2. Remove the marked part.
3. Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

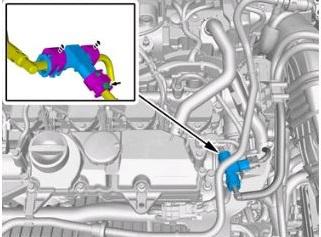

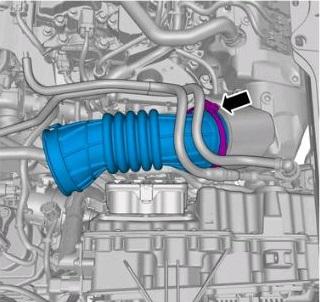

Loosen the hose clamp

Remove the hose

Courtesy of VOLVO CARS CORPORATION

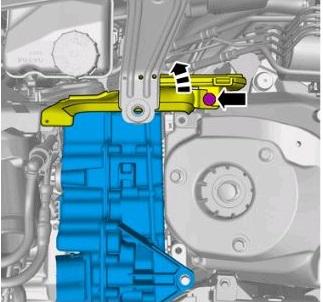

Remove the screws

Disconnect the connectors.

Torque:  M6, 10 Nm

Courtesy of VOLVO CARS CORPORATION

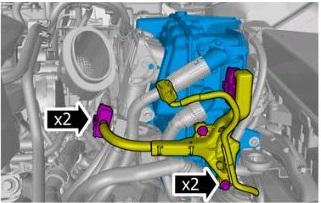

Remove the nuts screws.

• Torque:  M6, 10 Nm
• Torque:  M5, 5 Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screws

Torque:  M6 10Nm

Courtesy of VOLVO CARS CORPORATION

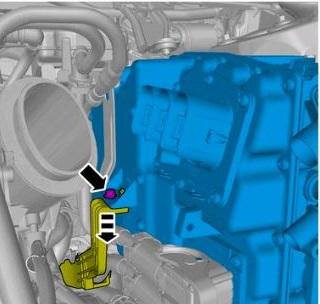

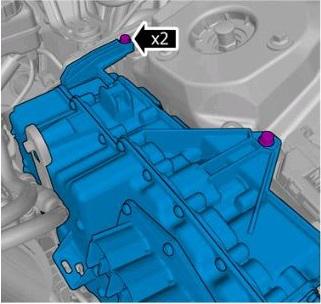

Remove the screws.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

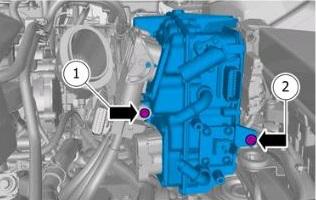

Remove the screws

Torque:  IGM, to the body frame, 13Nm

Courtesy of VOLVO CARS CORPORATION

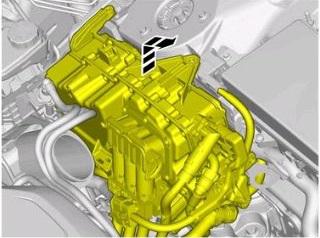

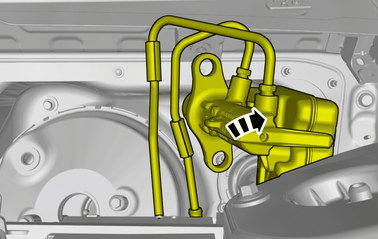

Lift the marked component forward.

Courtesy of VOLVO CARS CORPORATION

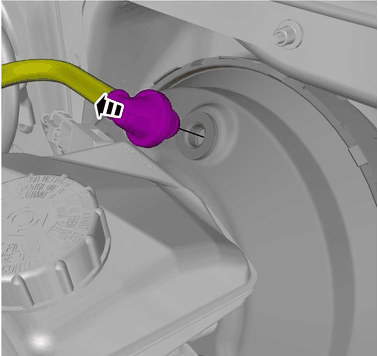

Undo the hose from the connection.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connectors

Loosen the clips.

Courtesy of VOLVO CARS CORPORATION

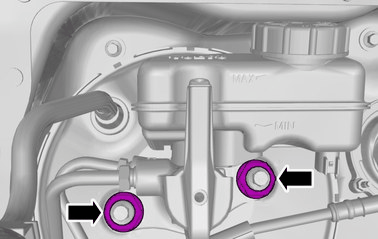

Remove the nuts

Torque:  Master cylinder to brake booster, 50Nm

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

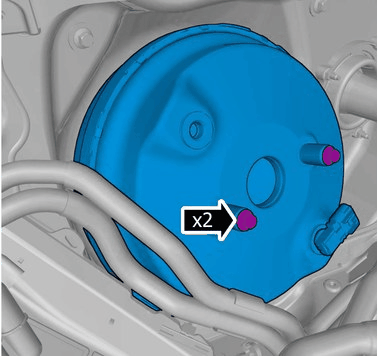

Remove the screws

Remove the marked part

Hint:

It may be necessary to twist or turn the component.

Torque:  M8, 24Nm

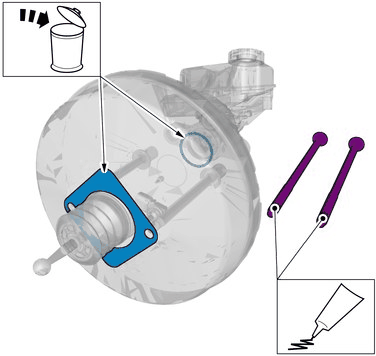

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

INSTALLATION

To install, reverse the removal procedure.

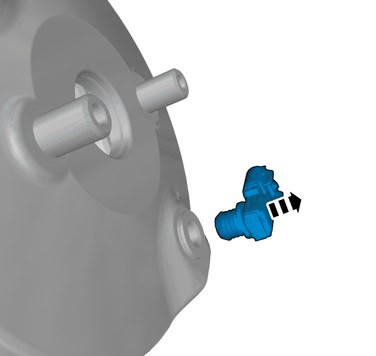

Courtesy of VOLVO CARS CORPORATION

Use:  Thread locker normal, 1161053

Perform Battery, connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

Calibration according to: Diagnostics / Components / Control modules/ Central Electronic Module (CEM) / Diagnostic sequences / Calibration of brake pedal sensor and brake pedal angle sensor
