Brake Booster Vacuum Hose [2020, B4204T27]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the plenum cover, refer to: PLENUM COVER

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

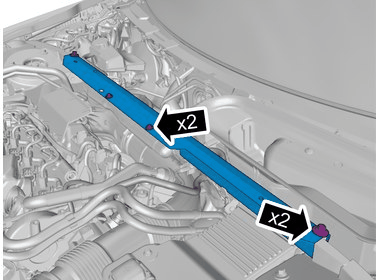

Remove the screws.

Torque: M6, 10Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

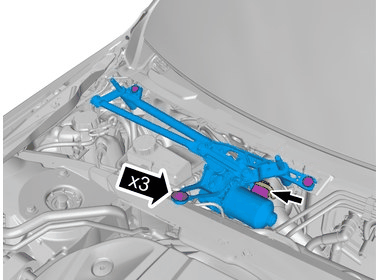

Remove the screws.

Torque: M8, 24Nm

Remove the screws.

Use hands only.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

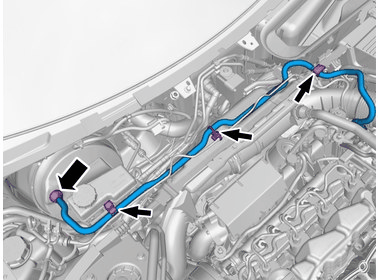

Release the locks.

Undo the hoses from the connections.

Courtesy of VOLVO CARS CORPORATION

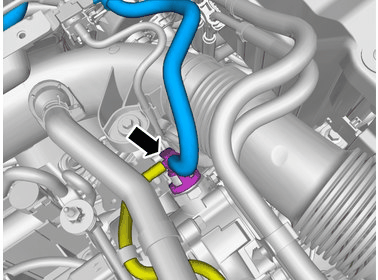

Undo the hose from the connection.

Loosen the clips.
