End Pipes, Double [2014-2017]: Removal
 Courtesy of VOLVO CARS CORPORATION
|

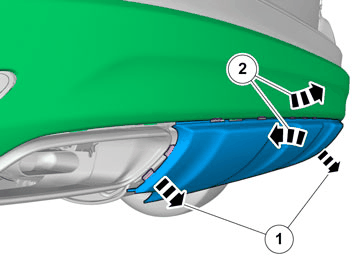

Remove the screws.
Remove the clips.
 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|

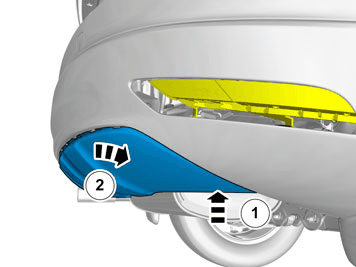

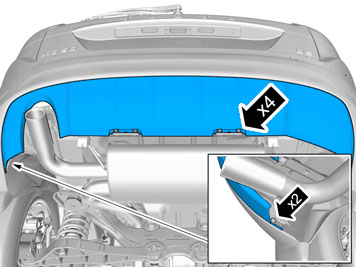

Raise the car.
Remove the screws.
Remove the clips.
On both sides.
 Courtesy of VOLVO CARS CORPORATION
|

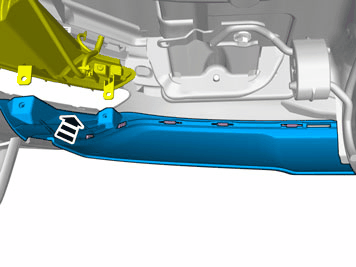

Remove the part carefully

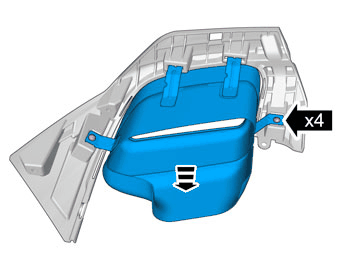

Remove the panel.
On both sides.
 Courtesy of VOLVO CARS CORPORATION
|

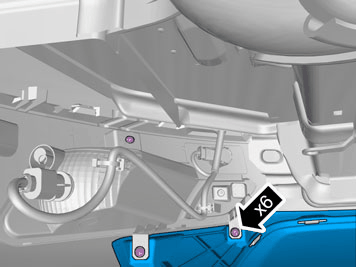

Remove the screws.
Remove the part carefully
On both sides.
 Courtesy of VOLVO CARS CORPORATION
|

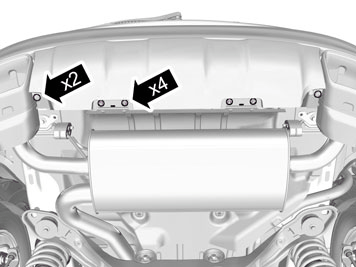

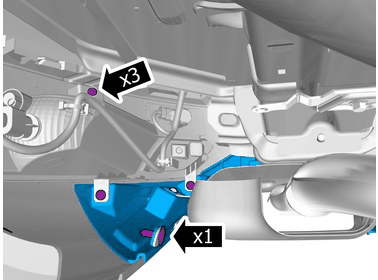

Remove the screws.
 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|
Remove the part carefully
 Courtesy of VOLVO CARS CORPORATION
|

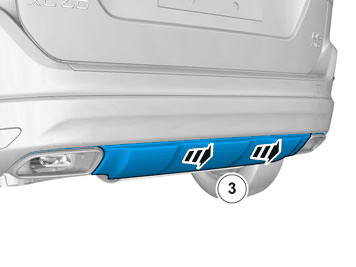

Detach the panel.
 Courtesy of VOLVO CARS CORPORATION
|
Remove the panel.
