Crankcase Ventilation, Check [2009-2010, B6304T2 | 2011, 2012, 2014-2016, B6304T4]: Check

CAUTION:

Make sure that the engine oil is to specification.

Increase the engine speed to 2, 500 RPM and maintain for 6 minutes or until the engine has reached normal operating temperature.

NOTE:

Active electronic devices can result in incorrect readings. All unrelated electronic devices must be switched off.

CAUTION:

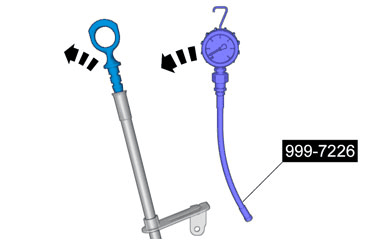

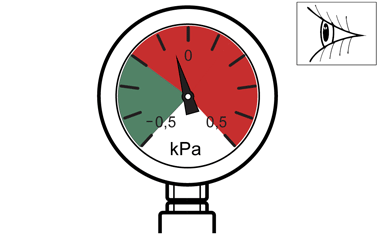

Make sure to zero the dial indicator gauge before each measurement.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Start and run the engine at idle.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

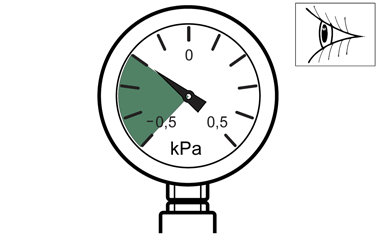

If the measured value deviates from the value or interval specified in the graphic, follow the instruction below.

Replace flame trap. Refer to OIL TRAP
