WASTEGATE Control Valve Adjustment [2014-2016, B6304T4 | 2015-2016, B6304T5]: Check

Remove right front wheel, refer to: WHEELS

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Use:  Universal oil, 1161657

Courtesy of VOLVO CARS CORPORATION

Special Tool: 951 2986

Courtesy of VOLVO CARS CORPORATION

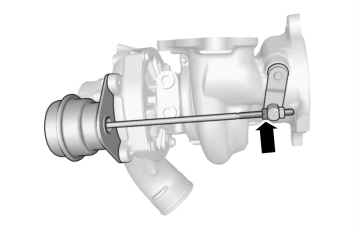

Repeat the following steps until the component moves freely. Some minimal binding is permitted.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

1. Adjust to the specified value.
2. Close the shutoff valve.
3. Remove the hose.
4. Check that the pressure-drop remains within the specified values.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

1. Refer to table, using adjacent link.
CAUTION:

If the specified pressure is exceeded repeat the steps.

3. Refer to table, using adjacent link.

See information about wastegate valve, refer to: WASTEGATE VALVE

Courtesy of VOLVO CARS CORPORATION

Note the value.

Courtesy of VOLVO CARS CORPORATION

1. Refer to table, using adjacent link.
2. Refer to table, using adjacent link.
CAUTION:

If the specified pressure is exceeded repeat the steps.

See information about wastegate valve, refer to: WASTEGATE VALVE

Courtesy of VOLVO CARS CORPORATION

Note the value.

Calculate the average value.

Follow the instructions for wastegate valve, refer to: WASTEGATE VALVE

If the average value is not according to specifications, adjust the stroke.

ADJUSTMENT

Remove the right drive shaft, refer to: DRIVE SHAFT RIGHT

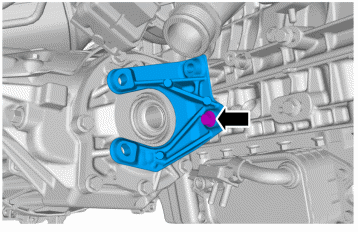

Courtesy of VOLVO CARS CORPORATION

Torque:  M10, 50Nm

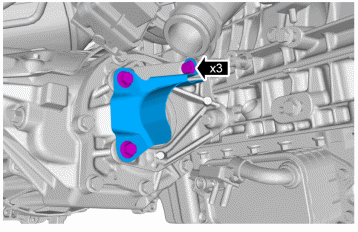

Courtesy of VOLVO CARS CORPORATION

Torque:  M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

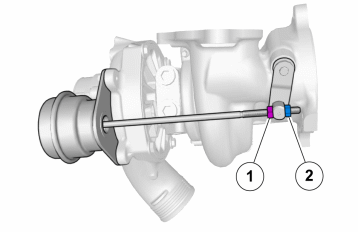

1. Loosen the nut.
2. Adjust to specified average value.

See information about wastegate valve, refer to: WASTEGATE VALVE

Courtesy of VOLVO CARS CORPORATION

Torque:  Pressure regulator, lock nut adjuster rod, 7Nm

Courtesy of VOLVO CARS CORPORATION

1. Loosen the nut.
2. Adjust to specified average value.

See information about wastegate valve, refer to: WASTEGATE VALVE

Courtesy of VOLVO CARS CORPORATION

Torque:  Pressure regulator, lock nut adjuster rod, 7Nm

Repeat the method to verify that the average value is according to specifications.
