Removal And Installation

REMOVAL

Remove mass airflow sensor MAF, refer to: MASS AIR FLOW SENSOR MAF

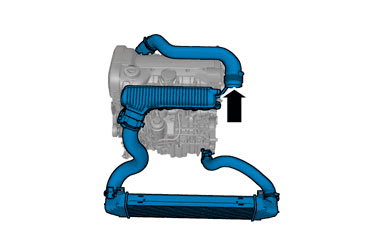

LEAK DETECTION

GLL178577Courtesy of VOLVO CARS CORPORATION
NOTE:

Always follow the manufacturer's instructions when handling the equipment.

Special Tool: 981 4118

GLL178578Courtesy of VOLVO CARS CORPORATION

INSTALLATION

Install mass airflow sensor MAF, refer to: MASS AIR FLOW SENSOR MAF
