Removal And Installation

REMOVAL

GLL1038755Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Remove the marked part.

Remove the air filter housing, refer to: AIR CLEANER HOUSING

LEAK DETECTION

GLL1001317Courtesy of VOLVO CARS CORPORATION
NOTE:

Always follow the manufacturer's instructions when handling the equipment.

Special Tool: 981 4118

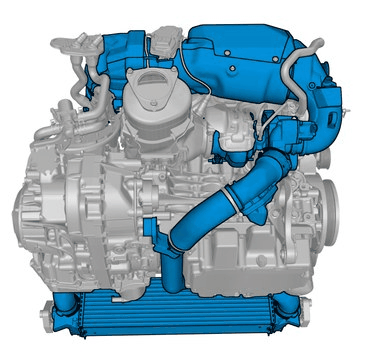

GLL1025592Courtesy of VOLVO CARS CORPORATION
NOTE:

Always follow the manufacturer's instructions when handling the equipment.

Special Tool: 981 4118

Remove the Special Tool.

INSTALLATION

To install, reverse the removal procedure.
