Removal And Installation

REMOVAL

See information about lifting points body, refer to: JACKING POINTS BODY

Courtesy of VOLVO CARS CORPORATION

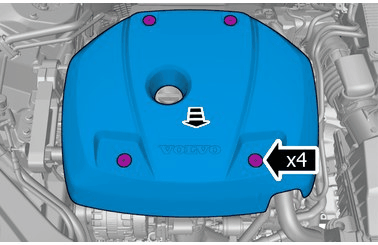

Loosen the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the clips.

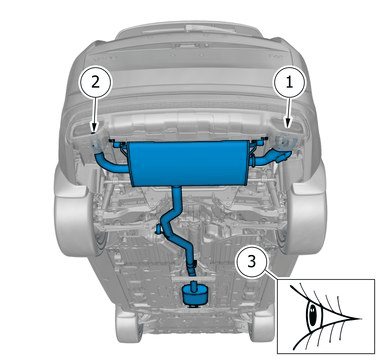

LEAK DETECTION

Courtesy of VOLVO CARS CORPORATION

1. Make sure that the opening is blocked.
2. Use:  Leak detection equipment (smoke generator)
3. Check the component for leaks.

Courtesy of VOLVO CARS CORPORATION

Check the component for leaks.

Remove the Special Tool.

INSTALLATION

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Press the clip(s) into position.
