Bushing Push Rod [2017, B4204T23; B4204T27]: Removal
Remove driver's side panel, refer to: INSTRUMENT PANEL LOWER
CAUTION:
The clip is to be removed in pieces.
CAUTION:
When removed, the push rod is not be loaded with traction force over 25 N.
NOTE:
Make sure that a new component is installed.
Note position of components.
Make sure that the component is fitted in exactly the same position as the old one.

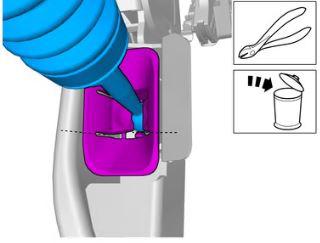

Cut following the dotted lines.
Remove the clip.
